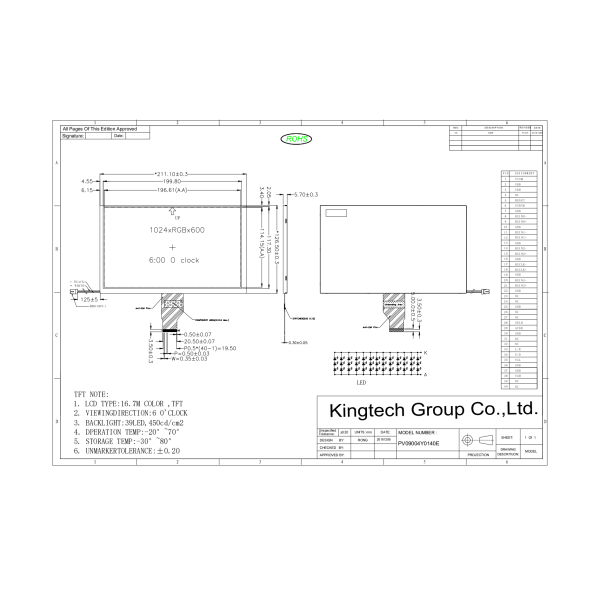

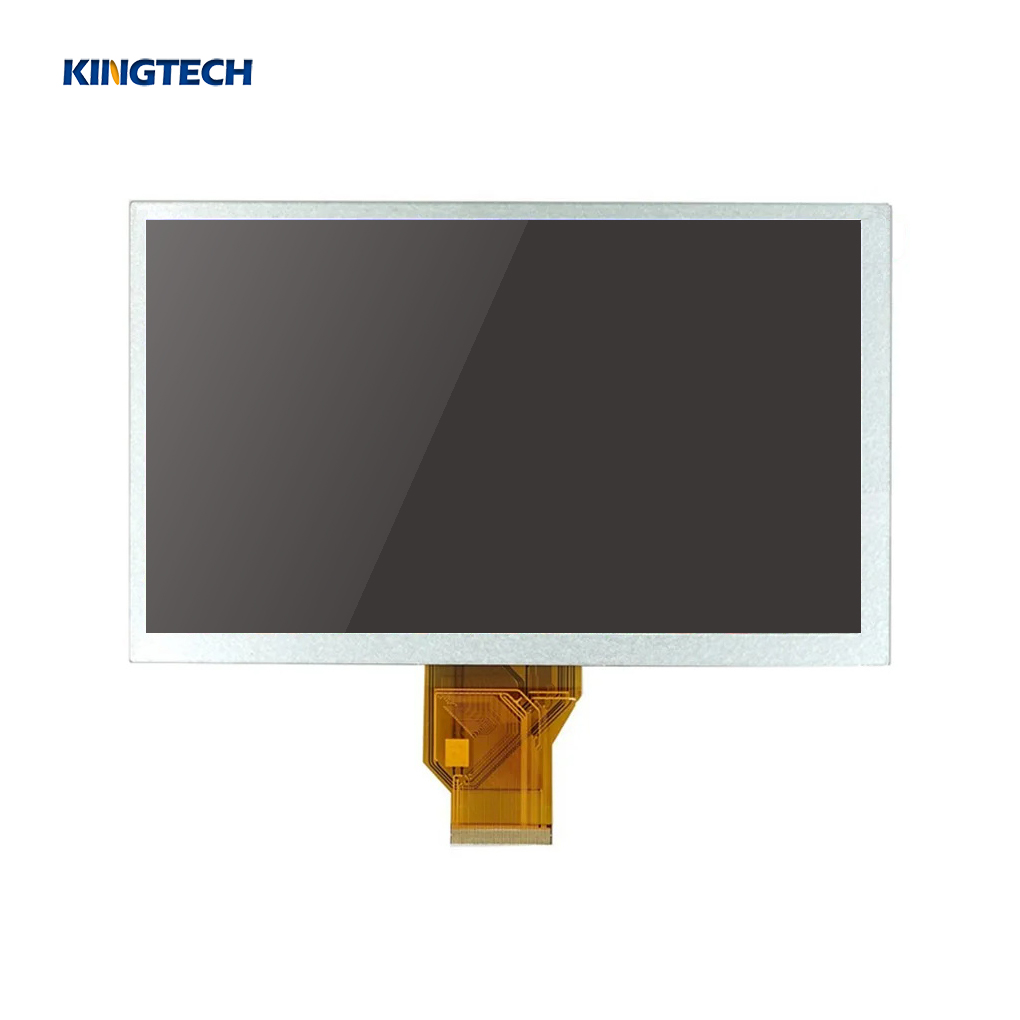

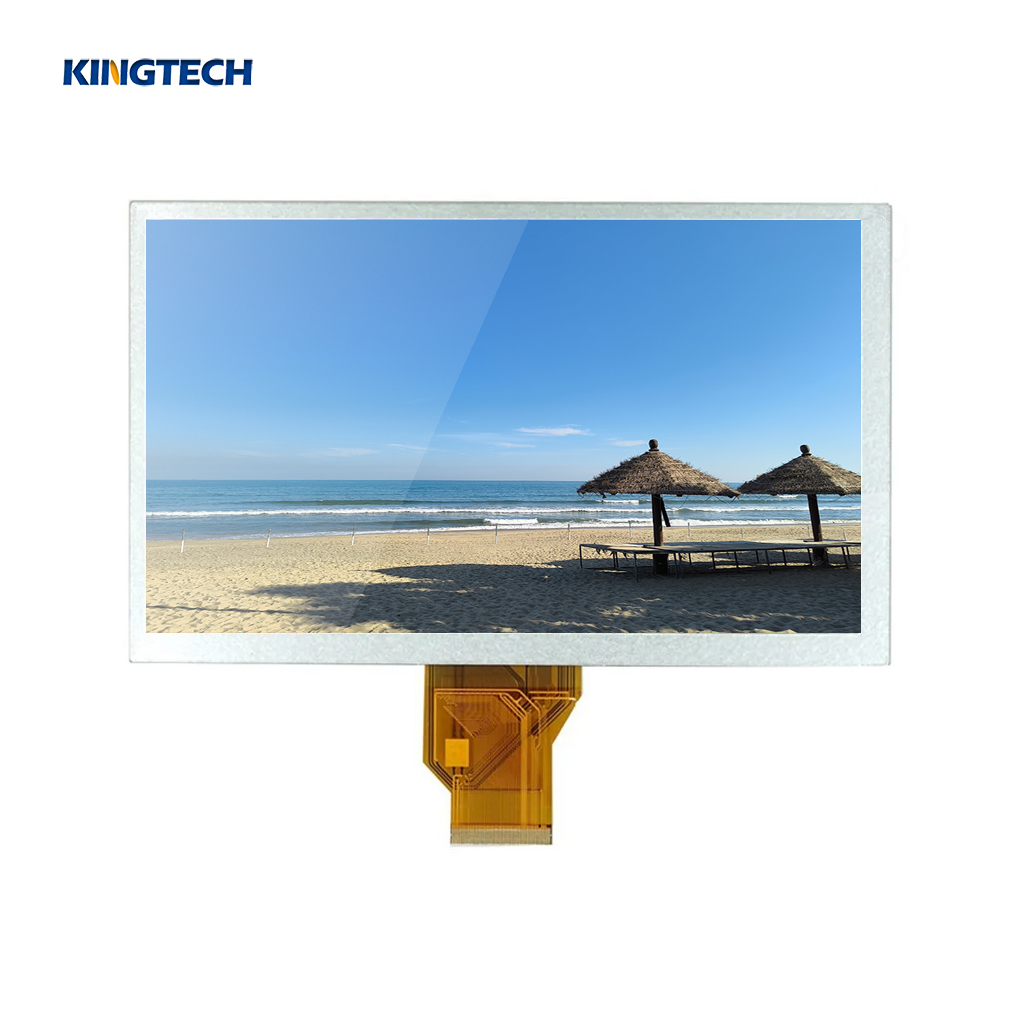

9 inch 1024*600 TFT display module 450 nits
| Item | 9 inch TN 1024*600 TFT LCD display |
| Model No. | PV09004Y0140E |
| Resolution | 1024*600 |
| Outline Dimension (mm) | 211.1*126.50*5.7 |
| Active Area (mm) | 196.61*114.15 |
| Viewing Angle | 6 O’clock |
| Brightness | 450nits |
| Interface | LVDS |
| Backlight | 3*13LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial， |
For product pricing,customization,or other inquiries:
Share to:
- 9 inchTFTdisplay
- 1024*600/WSVGA
- Stable supply
- 6 O’clock
- LVDSinterface
- 450nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
