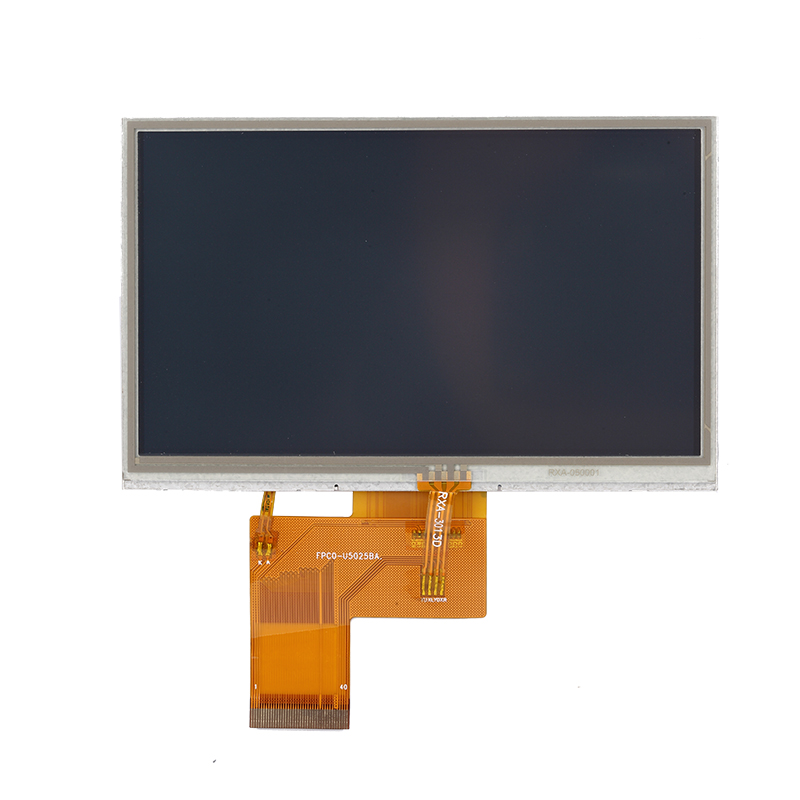

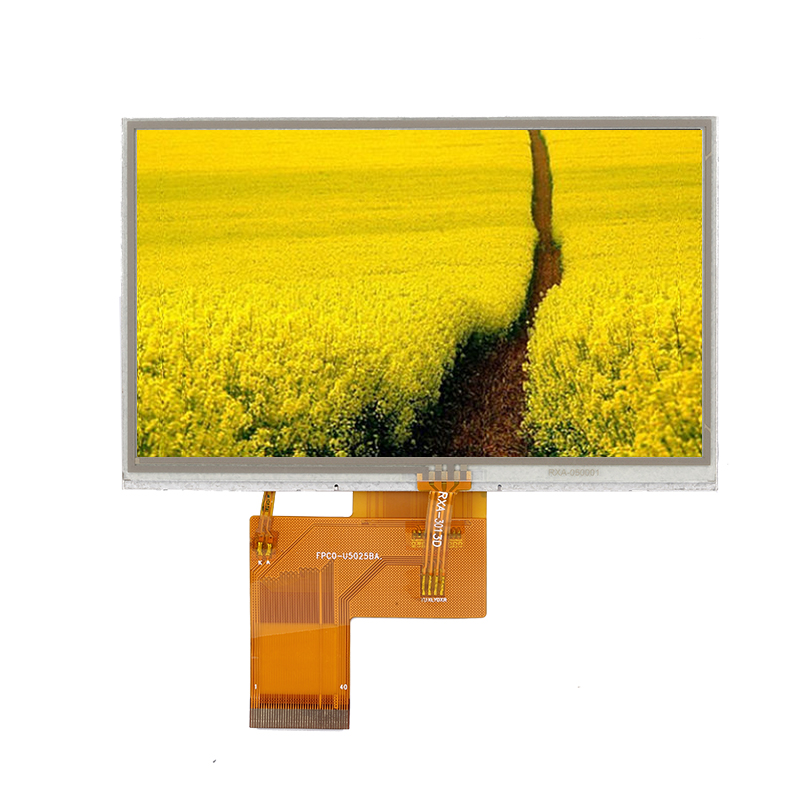

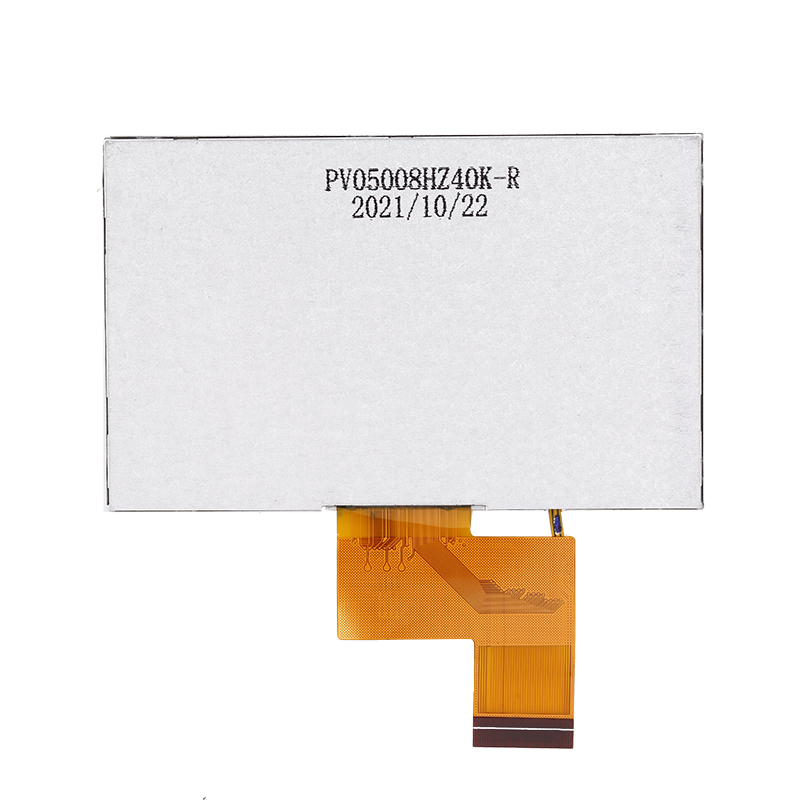

A diagonal size 5.0 inch TFT LCD module

Item	High brightness 5.0 inch TFT 800×480 module display
Model No.	PV05018Y0140U
Resolution	800*480

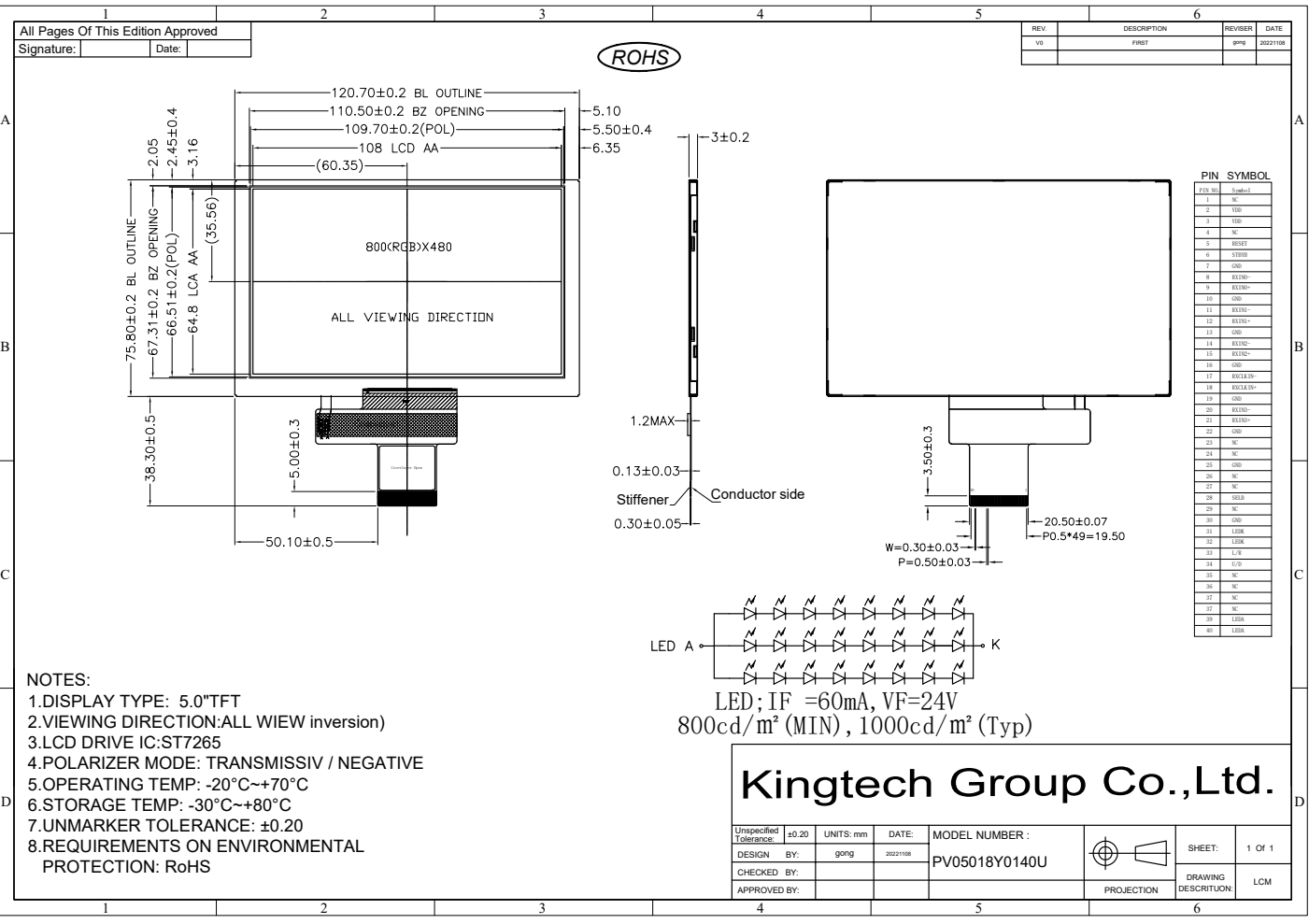

Outline Dimension (mm)	120.775.803.00
Active Area (mm)	108*64.8
Viewing Angle	All
Brightness	1000nits
Interface	LVDS Interface
Backlight	8*3LED
Driving IC	ST7265
PIN No.	40
Operating Temperature	-20~70
Storage Temperature	-30~80
Touch screen	With/without capacitive touch screen
Application	Outdoor self service Kiosks, Motorcycle or Scooter Dashboard,Gas pump,EV charging station, GPS devices

For product pricing,customization,or other inquiries:

5.0 inch TFTdisplay
800*480 /WVGA
Stable supply
Full View angle
LVDSInterface
1000nits brightness
With/Without Capacitive touch
Outdoor use:Outdoor self service Kiosks,Motorcycle or Scooter Dashboard, Gas pump, EV charging station, GPS devices, Fish Finder, Yacht & speed-boat control panels, radios, and navigation displays
