Capacitive touch 7 inch 1024×600 resolution TTL/RGB interface IPS LCD module

Item	7 inch 1024×600 ips display
Model No	PV07026LZR50B
Resolution	1024×600
Outline Dimension	164.90(W)100.00(H)4.98(T)
Active Area(mm)	154.21(W)*85.92(H)
Brightness	450nits / 1000nits
Viewing Angle	All
Interface	TTL / RGB
PIN	50
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Touch	capacitive touch screen
Board	HDMI board

For product pricing,customization,or other inquiries:

7 inch 1024×600 ttl/RGB interface IPS 450NITS brightness LCD display with capacitive touch

1. PV07026LZR50B mainly application for Industrial, medical equipment.
2. It with IPS/ All/ Wide viewing angle, 1024×600 resolution , 450nits/1000 nit brightness ,TTL/RGB interface , existing capacitive and HDMI board to to support Raspberry PI.
3. It also can custom touch panel as customer ‘s requirement .
I4. t is A grade product , the good quality well use for Industrial ，medical application. And it have EMI protection.

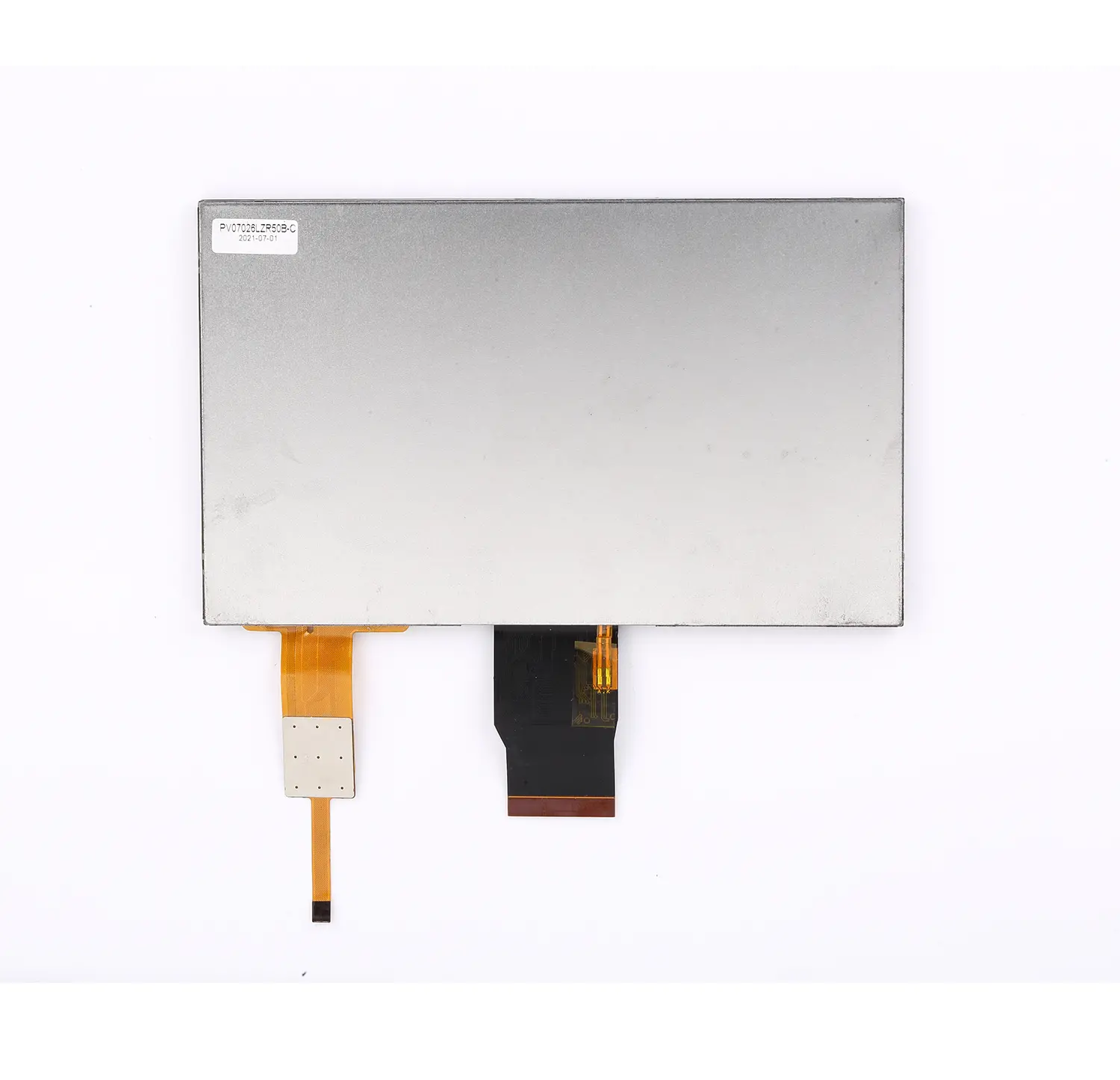

7 inch 1024×600 all view LCD display front view
