China factory direct sale multi touch 3.5″” ips lcd display
| Item | 3.5 inch IPS LCD display with RTP |
| Model No | PV035HV-CIRA5007-R |
| Resolution | 320×480 |
| Outline Dimension | 54.66*84.18*3.65 |
| Active Area(mm) | 48.96*73.44 |
| Interface | MCU/SPI+RGB interface |
| Viewing Angle | All |
| Driver IC | ILI9488 |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Brightness | 330nits |
| Touch screen | Capacitive touch screen/ Optical bonding |
For product pricing,customization,or other inquiries:
Share to:
3.5 inch 320×480 resolution SPI+RGB interface IPS LCD module with resistive touch screen optical bonding
1. PV035HV-CIRA5007-R mainly application handheld device , Industrial ,medical equipment.
2. It with 320×480 resolution , IPS/ Wide/ Free/ All view angle, 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB, ILI 9488 driver IC , 300 nits brightness, with capacitive touch panel/optical bonding .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application.

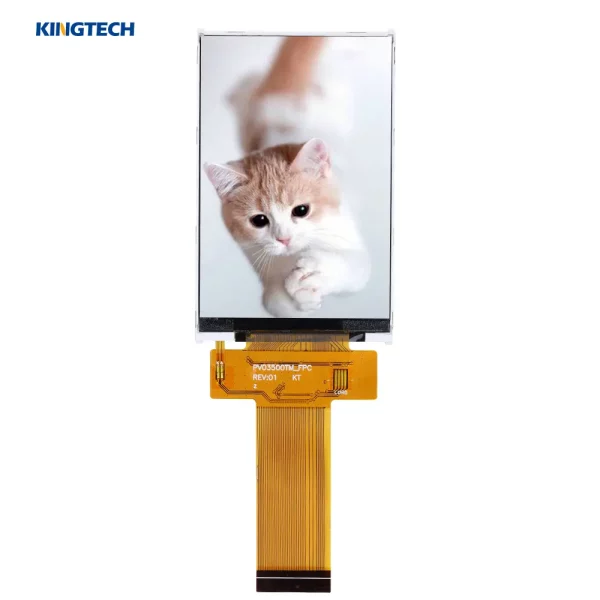

3.5” 320×480 IPS touch screen front view
