IPS 10.1 inch 800×1280 MIPI videl TFT LCD display
| Item | 10.1 inch 800×1280 IPS touch screen LCD |
| Model No | PV10108TD31F-C |
| Resolution | 800×1280 |
| Outline Dimension | 146.16(W)*226.46(H)*2.54(T) |
| Active Area(mm) | 135.36(H) *216.58(V) |
| Brightness | 330nits |
| Viewing Angle | All |
| Interface | MIPI VIDEO MODE |
| Driving IC | OTM1287A |
| PIN | 31 |
| Operating Temperature | 0 to +50℃ |
| Storage Temperature | -10 to +60℃ |
| Touch | Capacitive touch |
For product pricing,customization,or other inquiries:
Share to:
10.1 inch 800×1280 MIPI infterface IPS portrait LCD touch scree display
1. PV10108TD31F-C mainly application for industrial device , logistics device
2. It with 800×1280 resolution , IPS full viewing angle, 330nits brightness, MIPI interface , OTM1287A driver IC, existing capacitive touch .
3. And it can custom the capacitive or resistive touch panel as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application

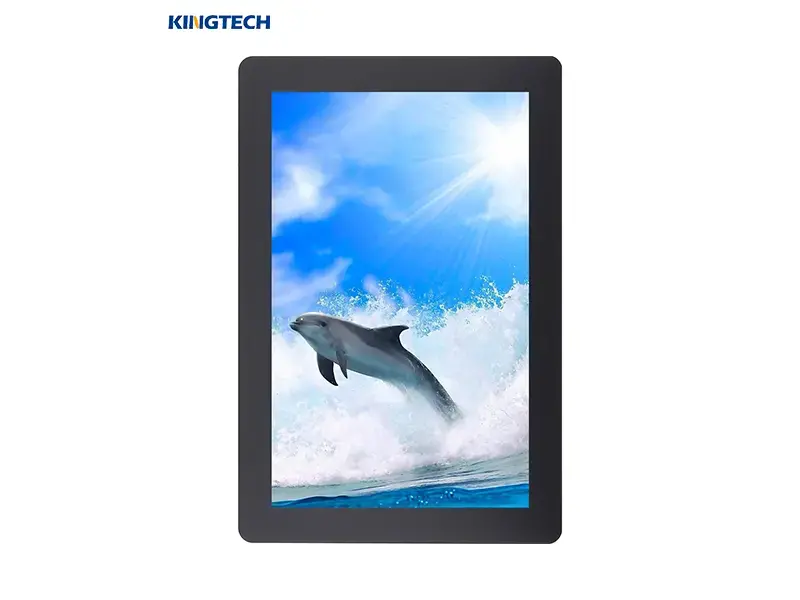

10.1 inch MIPI interface capacitive touch screen
10.1 inch MIPI interface capacitive touch screen front view
