IPS 4.3 inch 480×272 RGB interface ST7283 IC 640 nits LCD display

Item	4.3 inch IPS touch screen TFT LCD
Model No	PV043014HZ40P-CT1
Resolution	480×272
Outline Dimension	105.567.25.02
Active Area(mm)	95.04*53.86
Interface	RGB Interface
Viewing Angle	All
Driver IC	ST7283
Display Mode	Transmissive / Normally Black
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Brightness	640nits
Touch screen	capacitive touch screen

For product pricing,customization,or other inquiries:

4.3 inch 480×272 IPS RGB interface 640nits high brightness lcd display
1. PV043014HZ40P-CT1 mainly application for Industrial ，medical equipment .
2.It with 480×272 resolution , 640nit brightness ,RGB interface , ST7283 driver IC , existing capacitive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

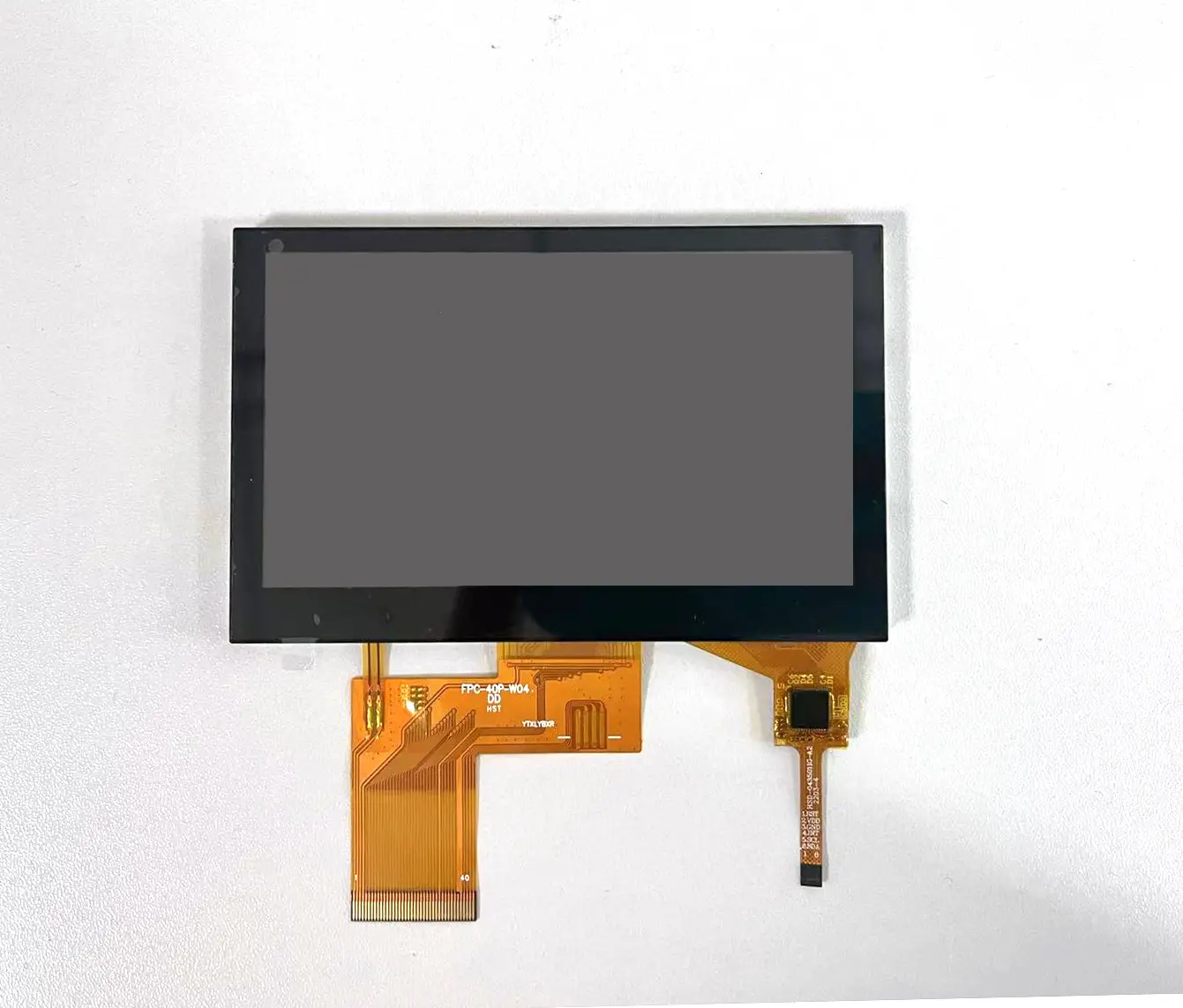

4.3 inch IPS capacitive touch front view
