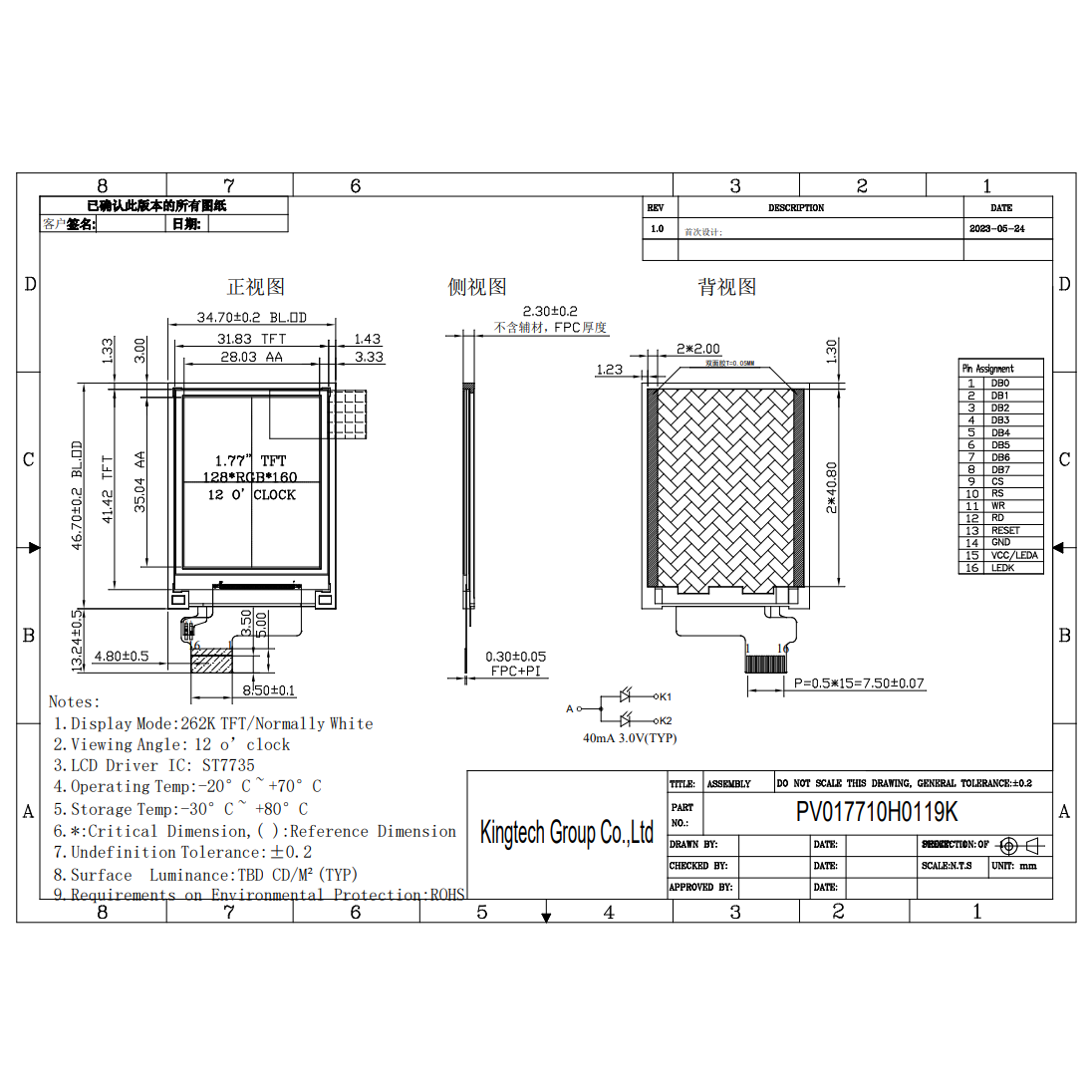

Kingtech 1.77inch 128X160 resolution TFT LCD display
| Item | 1.77 inch 128×160 MCU interface LCD display |
| Model No. | PV017710H0119K |
| Resolution | 240*180 |
| Outline Dimension (mm) | 34.7*46.7*2.3 |
| Active Area (mm) | 28.03*35.04 |
| Viewing Angle | 12 O’clock |
| Brightness | / |
| Interface | MCU |
| Backlight | 1*2LED |
| Driving IC | ST7735 |
| PIN No. | 19 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- Small LCD display
- 12 O’clock viewing angle/TN view angle
- Can custom resistive touch and capacitive touch
- 262K
- Normally white
