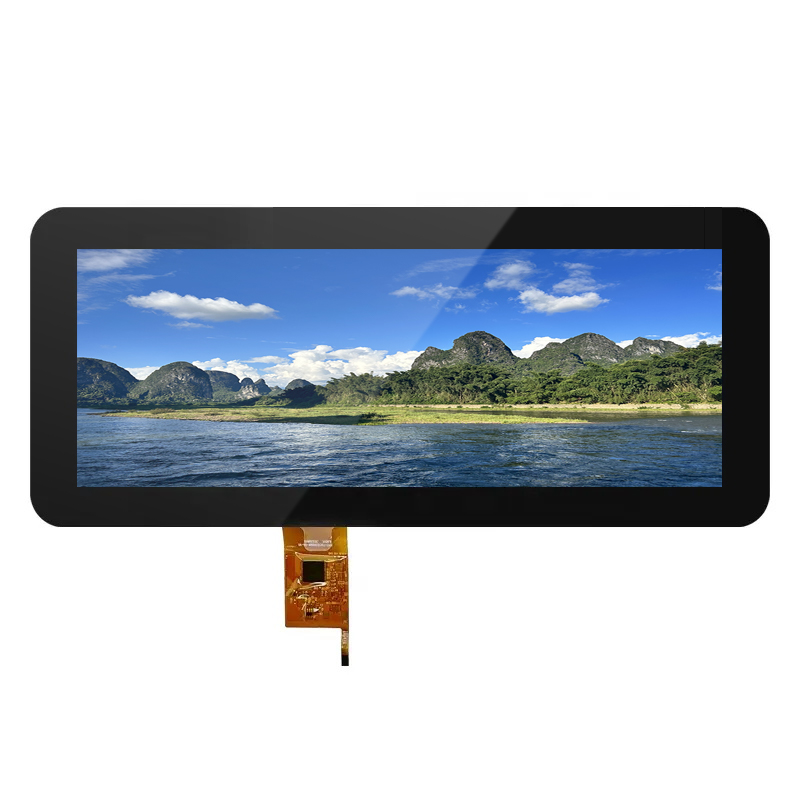

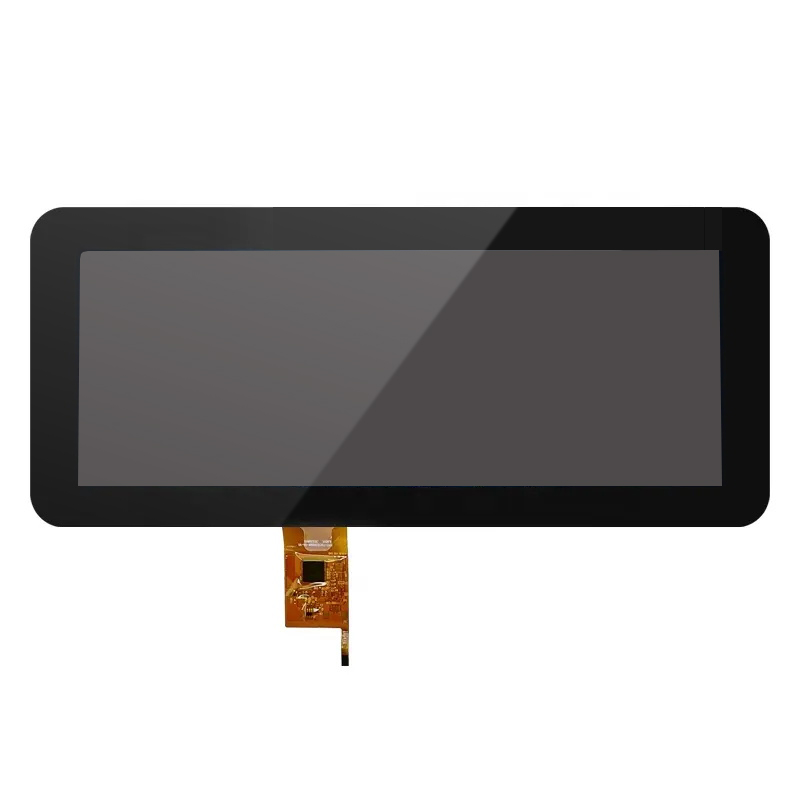

Kingtech 12.3 inch 1920*720 TFT LCD module
| Item | 12.3inch IPS 1920*720 TFT display |
| Model No. | PV012302YH50D |
| Resolution | 1920*720 |

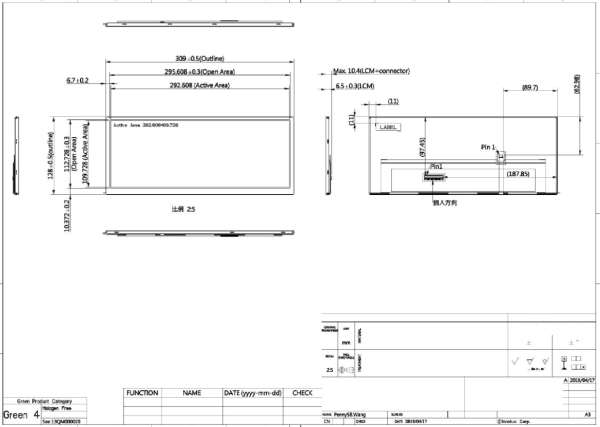

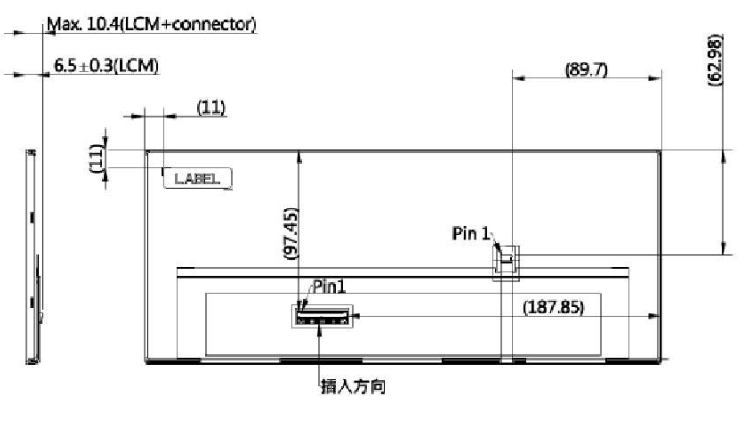

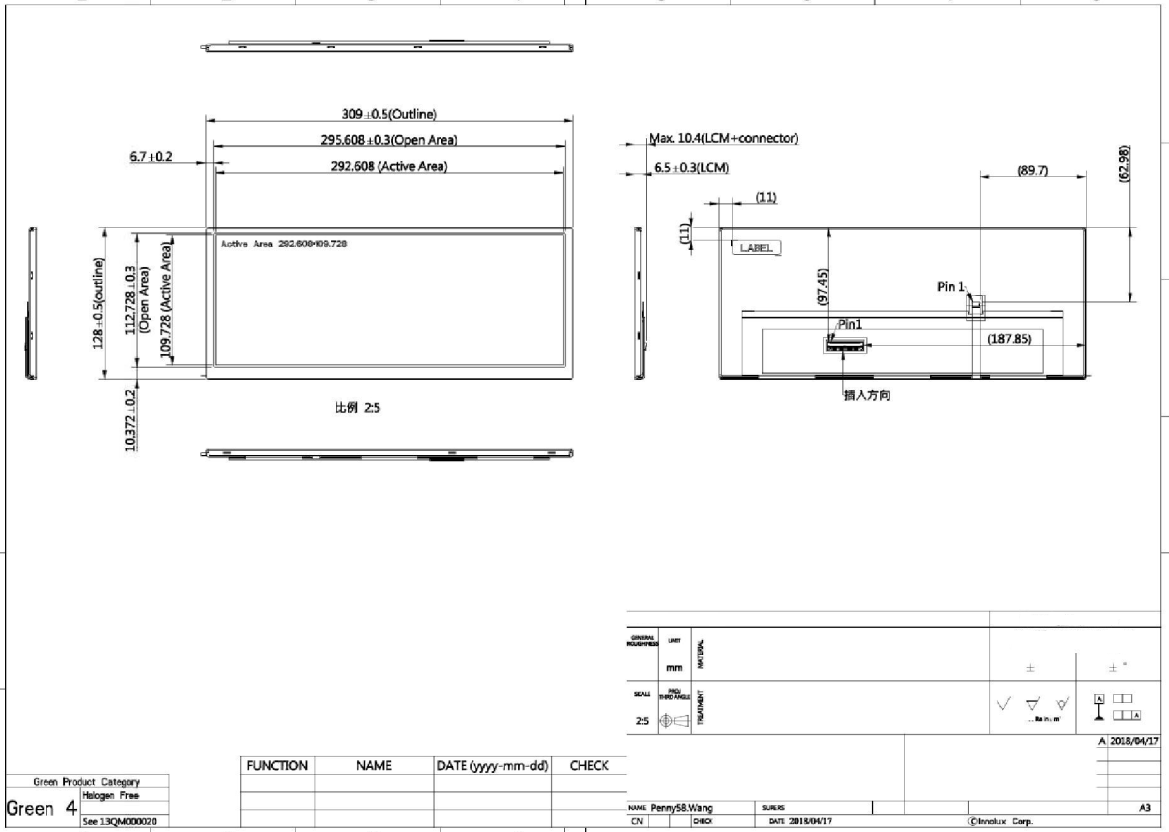

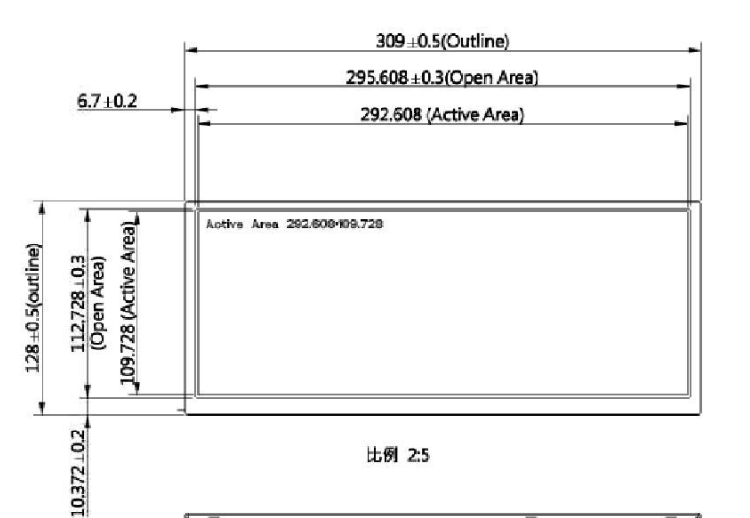

| Outline Dimension (mm) | 309.0*128.0*6.5 |
| Active Area (mm) | 292.608*109.728 |
| Viewing Angle | All |
| Brightness | 750nits |
| Interface | 2 Port LVDS (DE Only) |
| Backlight | 11*4LED |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~90C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike,Medical, hand-held device, industrial， |
For product pricing,customization,or other inquiries:
Share to:
- 12.3 inchTFT display
- 1920*720
- Stable supply
- IPS/Full/Wide/All viewing angle
- 2 Port LVDS (DE Only) interface
- -30~+85C/Wide operating temperature
- 7.750nits brightness/Sunlight readable/High brightness/Outdoor
- 8.Can custom resistive touch and capacitive touch
- 9.Medical, hand-held device, industrial, E-bike
