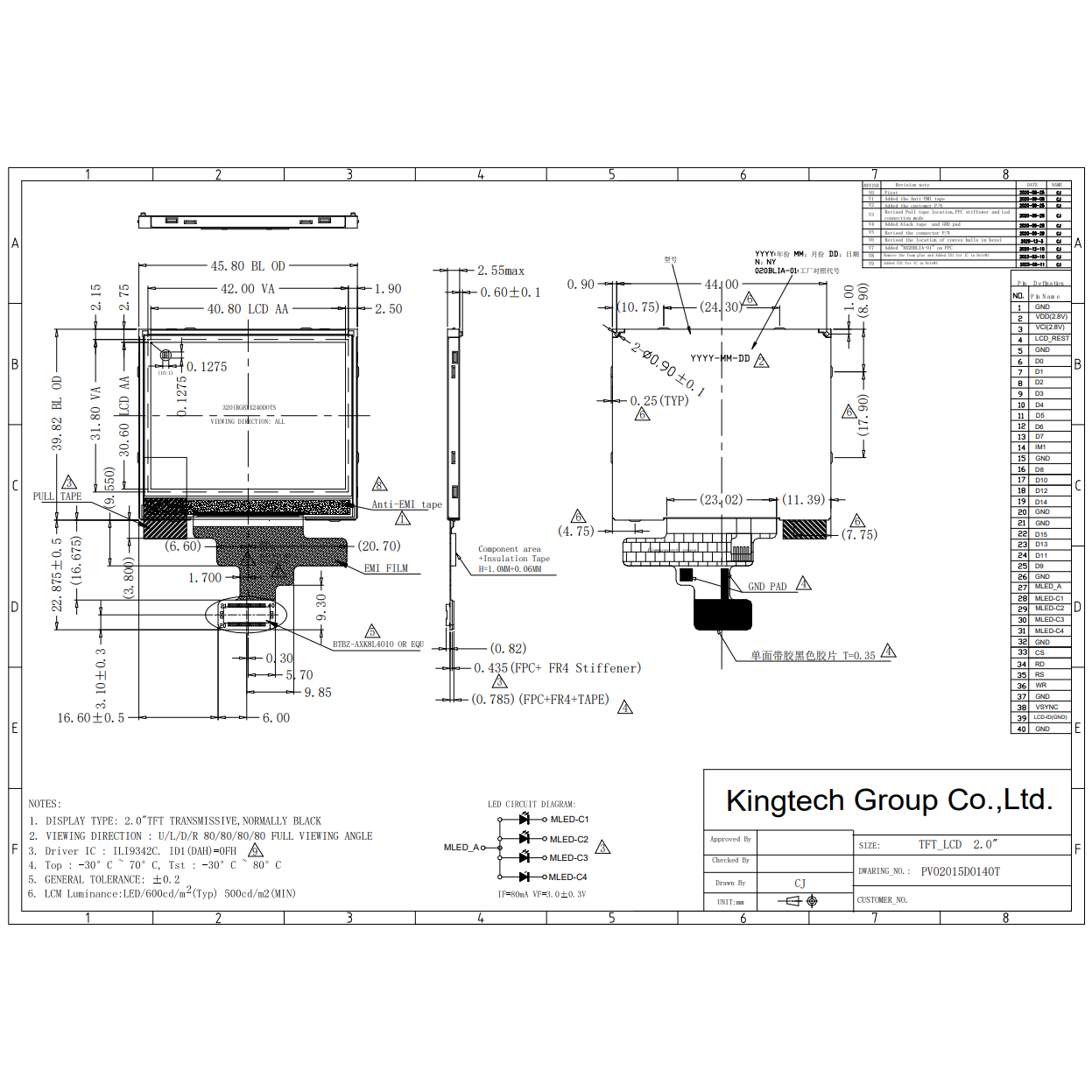

Kingtech 2.0 inch 240×320 resolution TFT LCD display
| Item | 2.0 inch 240×320 80 MCU16bit/ 80 MCU8bit LCD display |
| Model No. | PV02015D0140T |
| Resolution | 240*320 |
| Outline Dimension (mm) | 45.80*39.82*2.55 |
| Active Area (mm) | 40.80*30.60 |
| Viewing Angle | IPS |
| Brightness | 600nits |
| Interface | 80 MCU16bit/ 80 MCU8bit |
| Backlight | 1*4LED |
| Driving IC | ILI9342C |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- Small LCD display
- IPS/Wide/Free/All viewing angle
- Can custom resistive touch and capacitive touch
- QVGA resolution
