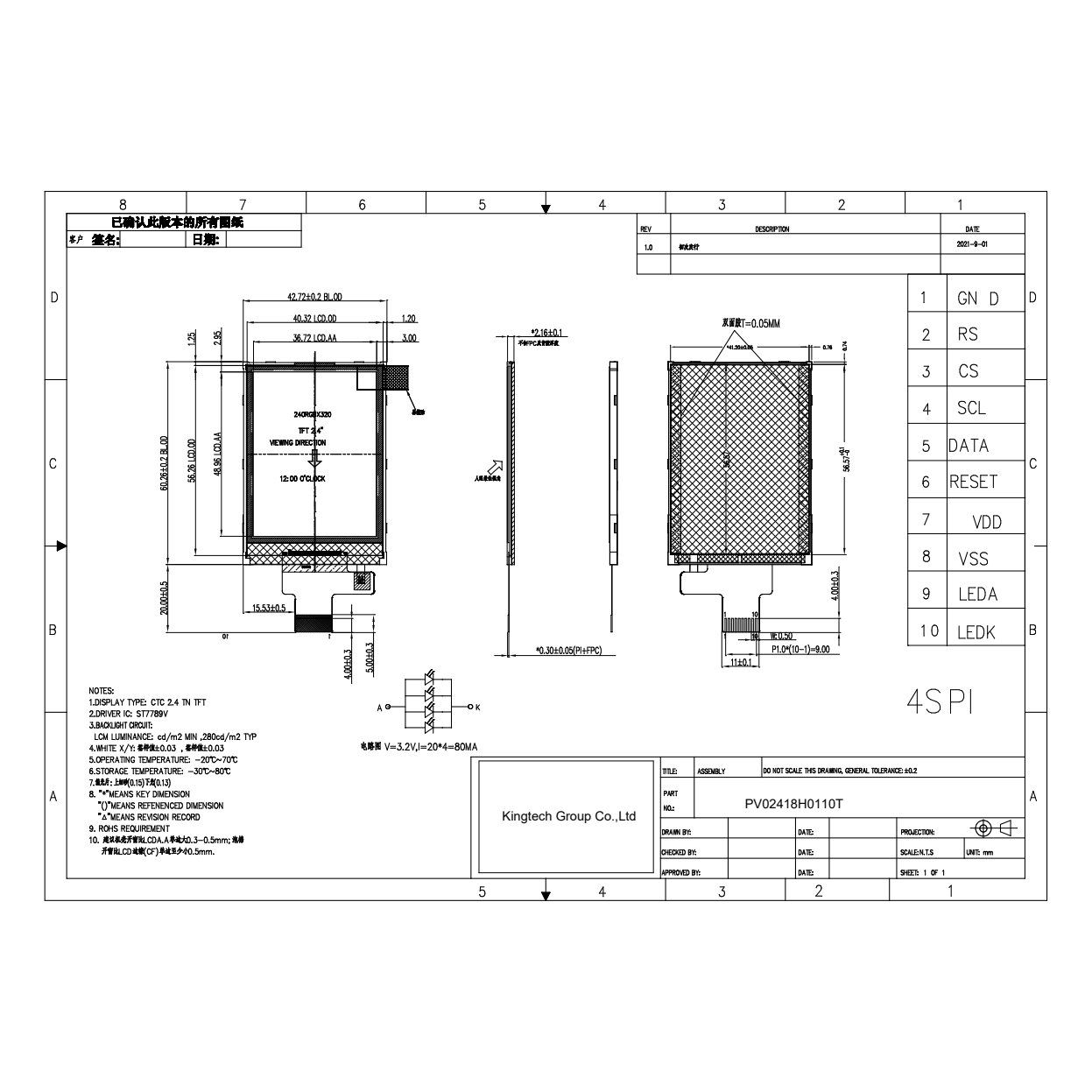

Kingtech 2.4 inch 240*320 TFT LCD
| Item | 2.4 inch 240*320 SPI interface lcd display |
| Model No. | PV02418H0110T |
| Resolution | 240*320/ |
| Outline Dimension (mm) | 42.72*60.26*2.16 |
| Active Area (mm) | 36.72*48.96 |
| Viewing Angle | 6 O’clock |
| Brightness | 280nits |
| Interface | 4 line SPI |
| Backlight | 1*4LED |
| Driving IC | ST7789V |
| PIN No. | 10 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD DISPLAY
- 240*320/QVGA
- Stable supply
- 12 O’clock viewing angle
- 4 Line SPI interface
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
