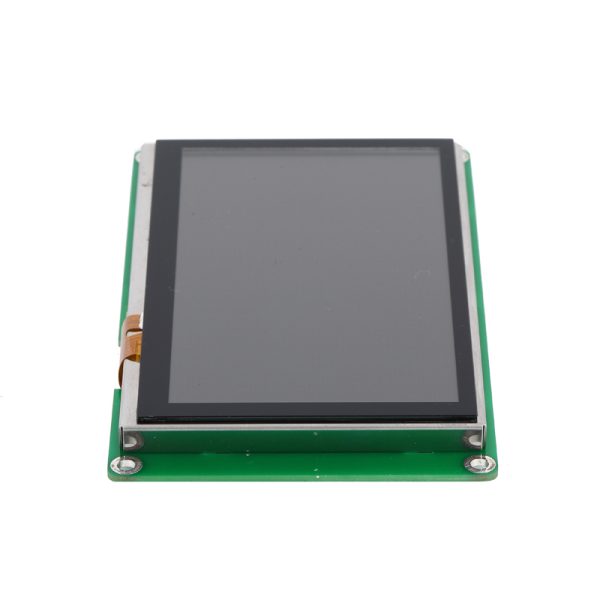

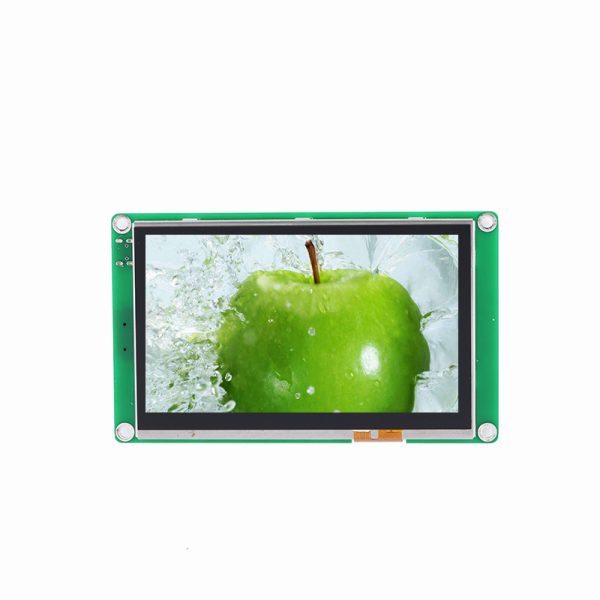

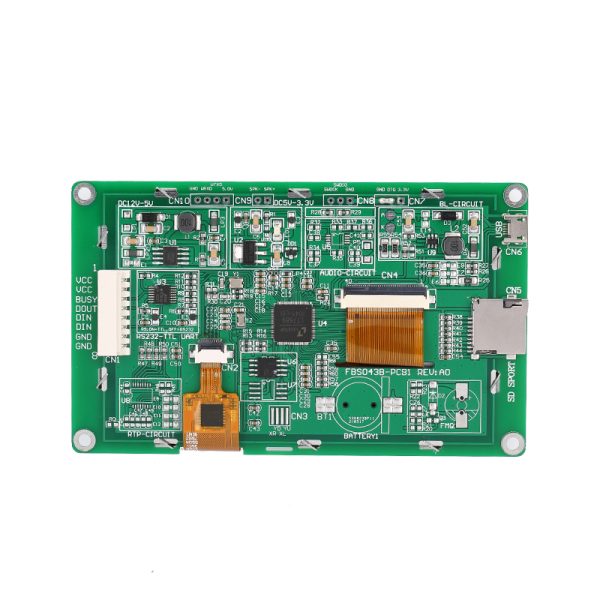

Kingtech 4.3 inch 480*272 Uart Serial Hmi Display Module
| Item | 4.3inch 800×480 with UART HMI Board LCD display |
| Model No. | PV043800480-HMI Board |
| Resolution | 800*480/WVGA |

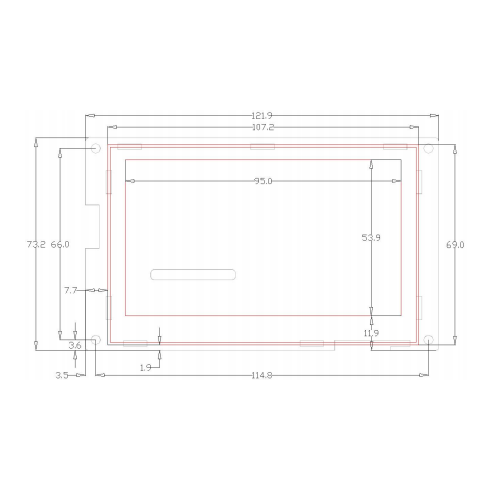

| Outline Dimension (mm) | 121.9*73.2 |
| Active Area (mm) | 95.0*53.9 |
| Viewing Angle | All |
| Brightness | 250nits |
| Interface | USB/UART |
| Backlight | / |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Industrial, Cope with most indoor scenes, Access control, Home appliance |
For product pricing,customization,or other inquiries:
Share to:
- IPS TFTLCD display
- 3inch 800×480 /WVGA
- Stable supply
- All/Full/Wide/IPS viewing angle
- 250nits brightness
- Touch optional
- Serial board /HMI board
