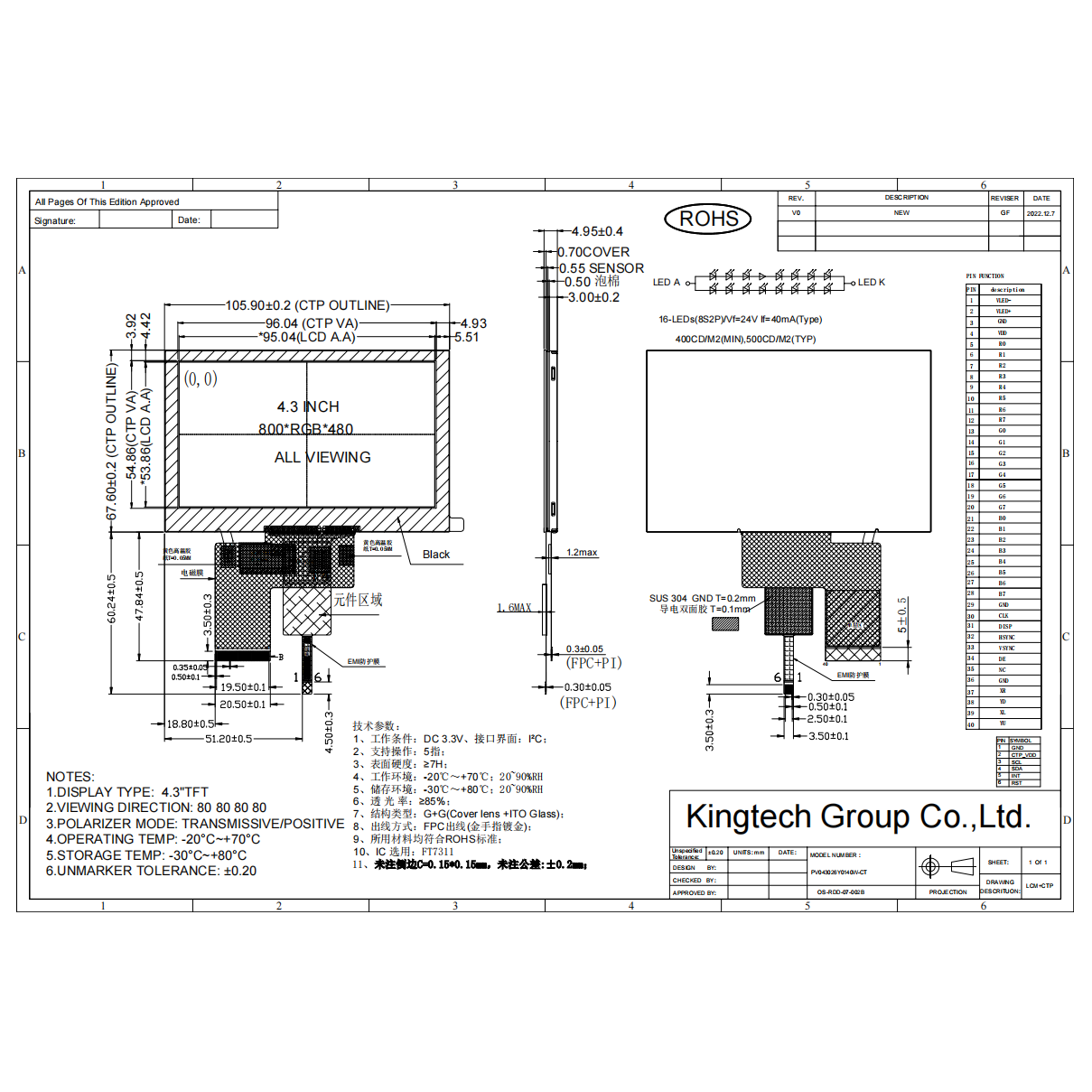

Kingtech 4.3″ inch 800*480 TFT module display
| Item | 4.3 Iinch IPS 800*480 TFT display |
| Model No. | PV043026Y0140W-CT |
| Resolution | 800*480 |
| Outline Dimension (mm) | 105.90*67.60*4.95 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | RGB |
| Backlight | 8*2LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- 500nits brightness/Sunlight readable/Outdoor/High brightness
- Can custom resistive touch and capacitive touch
- IPS/Free/All/Wide viewing angle
