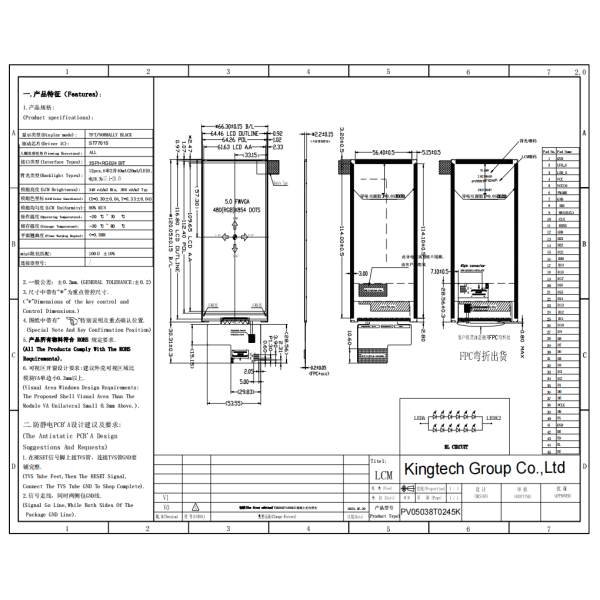

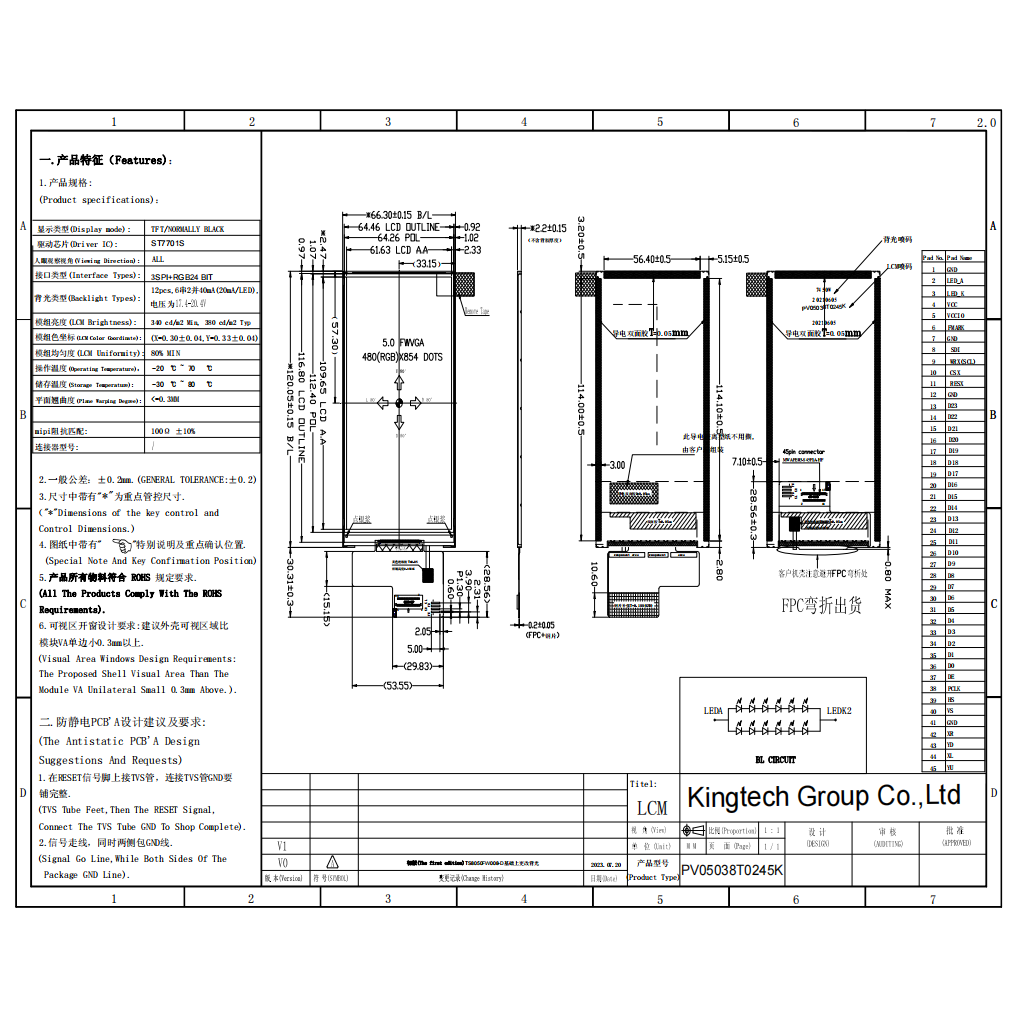

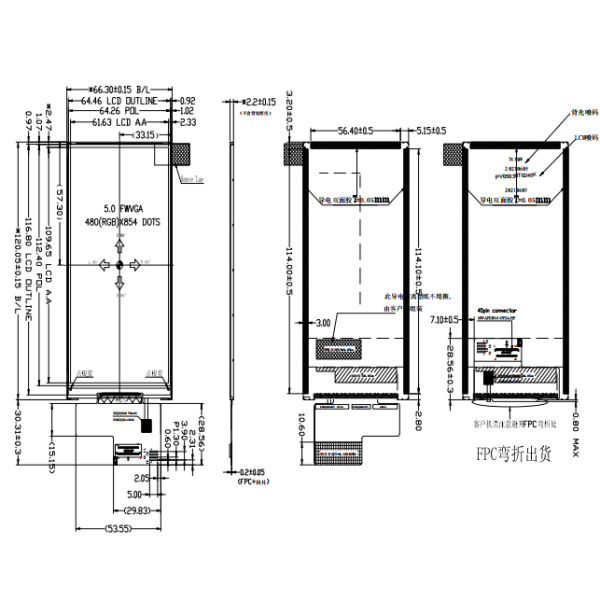

Kingtech 5.0” inch 480*854 TFT module display
| PV05038T0245K | 5.0 inch IPS 480*854 display |
| Model No. | PV05038T0245K |
| Resolution | 480*854 |
| Outline Dimension (mm) | 66.30*120.05*2.2 |
| Active Area (mm) | 61.56*109.53 |
| Viewing Angle | All |
| Brightness | 380nits |
| Interface | 3SPI+RGB24 BIT |
| Backlight | 6*2LED |
| Driving IC | ST7701S |
| PIN No. | 45 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- Can custom resistive touch and capacitive touch
- Display Colors of TFT LCD: 16.7M colors
- IPS/All/Free/Wide viewing angle
