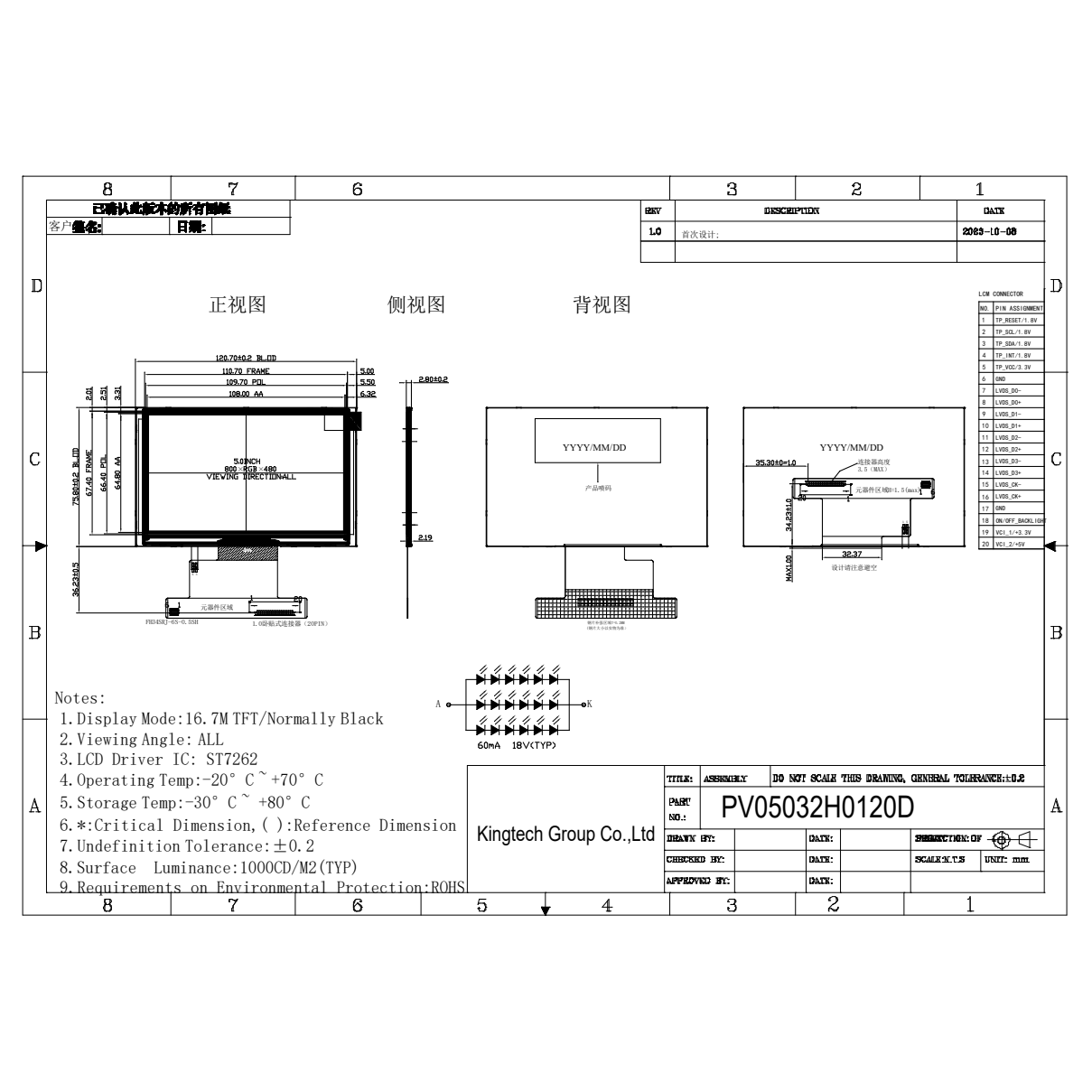

Kingtech 5.0 inch 800*480 TFT module display
| Item | 5.0inch IPS 800*480 TFT display |
| Model No. | PV05032H0120D |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.7*75.80*2.8 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1000 |
| Interface | LVDS |
| Backlight | 6*3LED |
| Driving IC | ST7262 |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, thermostat |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- WVGAresolution
- 1000nits brightness/Sunlight readable/High brightness/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
