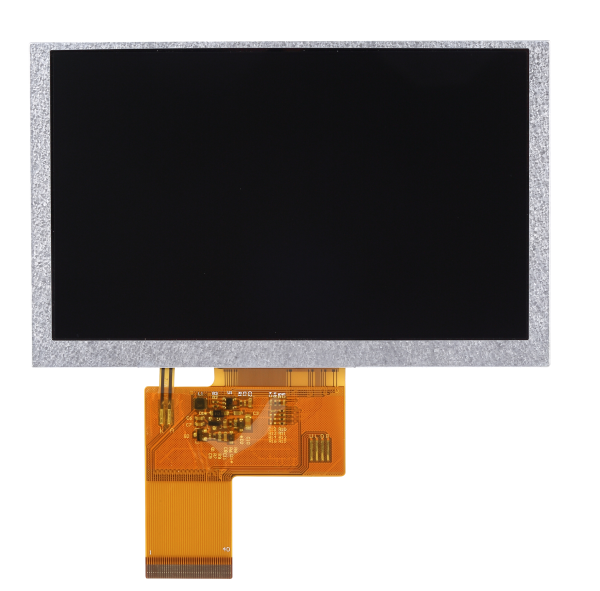

Kingtech 5.0 inch LCD module IPS TFT LCD Module
| Item | 5.0 inch IPS 800×480 LCD module |
| Model No. | PV05034H0140F |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.70*75.80*2.8 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | All |
| Brightness | / |
| Interface | RGB |
| Backlight | 6*3LED |
| Driving IC | ST7262 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Support resisive touch and capacitive touch |
| Application | Medical, industrial control, Meter, measuring equipment, handheld device |
For product pricing,customization,or other inquiries:
Share to:
- Landscape
- WVGA
- Standard size and resolution, commonly used
- 40pins RGB interface very standard configuration
- Full/IPS/Free/Wide/All Viewing angle
