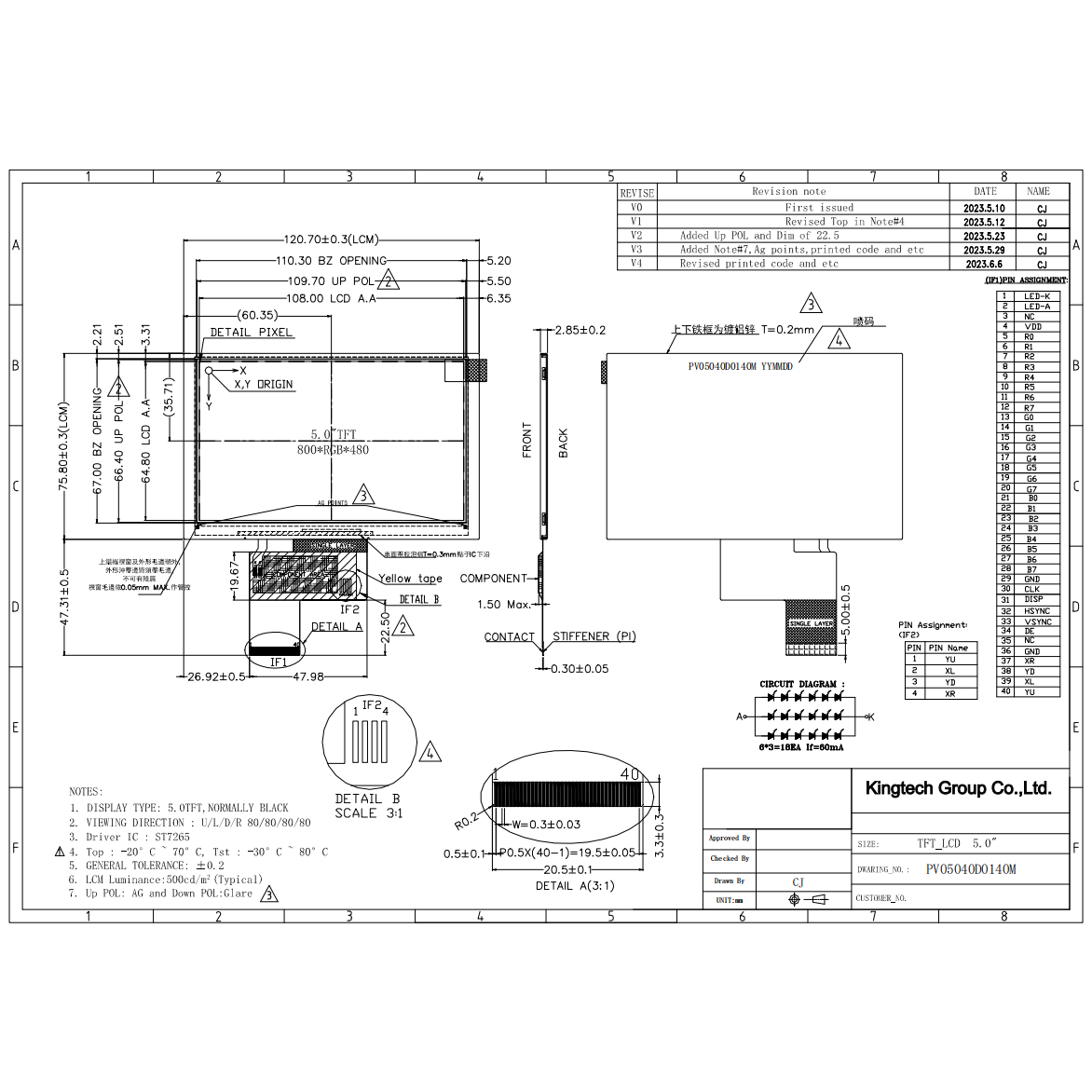

Kingtech 5.0inch transmissive TFT LCD module
| Item | 5.0inch IPS 800×480 LCD RGB interface with 40pins standard |
| Model No. | PV05040D0140M |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.70*75.80*2.85 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | IPS |
| Brightness | 500nits |
| Interface | RGB |
| Backlight | 6S3P-LEDs (white) |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch for optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers etc |
For product pricing,customization,or other inquiries:
Share to:
- 5inch IPS 800×480 / WVGA
- Better compatiblity with customer’s board, Standard RGB interface 40pins
- Resistive touch, Capacitive touch optional
