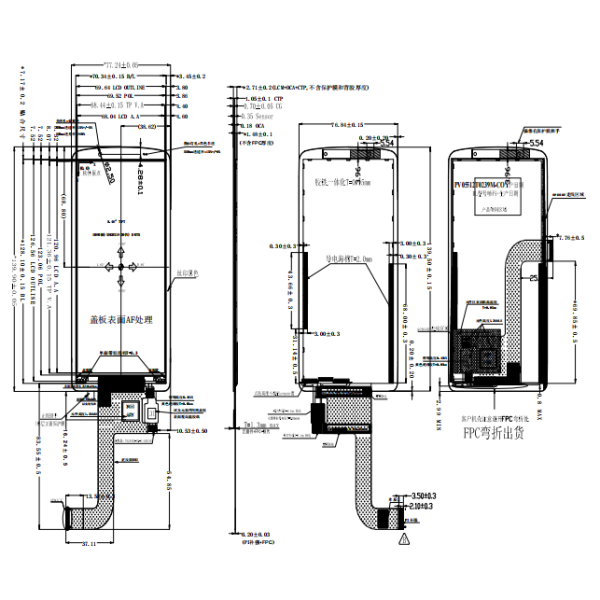

Kingtech 5.5inch TFT colorful LCD module
| Item | Thin 5.5inch IPS 1080×1920 LCD MIPI interface |
| Model No. | PV05512T0239M-CO |
| Resolution | 1080*1920 |
| Outline Dimension (mm) | 77.24*139.9*2.71 |
| Active Area (mm) | 68.04*120.96 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI-4 Lanes |
| Backlight | 8*2 LEDs |
| Driving IC | HX8399-C10 |
| PIN No. | 39 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch with OCA bonding |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike. |
For product pricing,customization,or other inquiries:
Share to:
- Thin 5.5inch Portrait
- High resolution 1080×1920
- MIPI interface
- Capacitive Touch, OCA bonding
