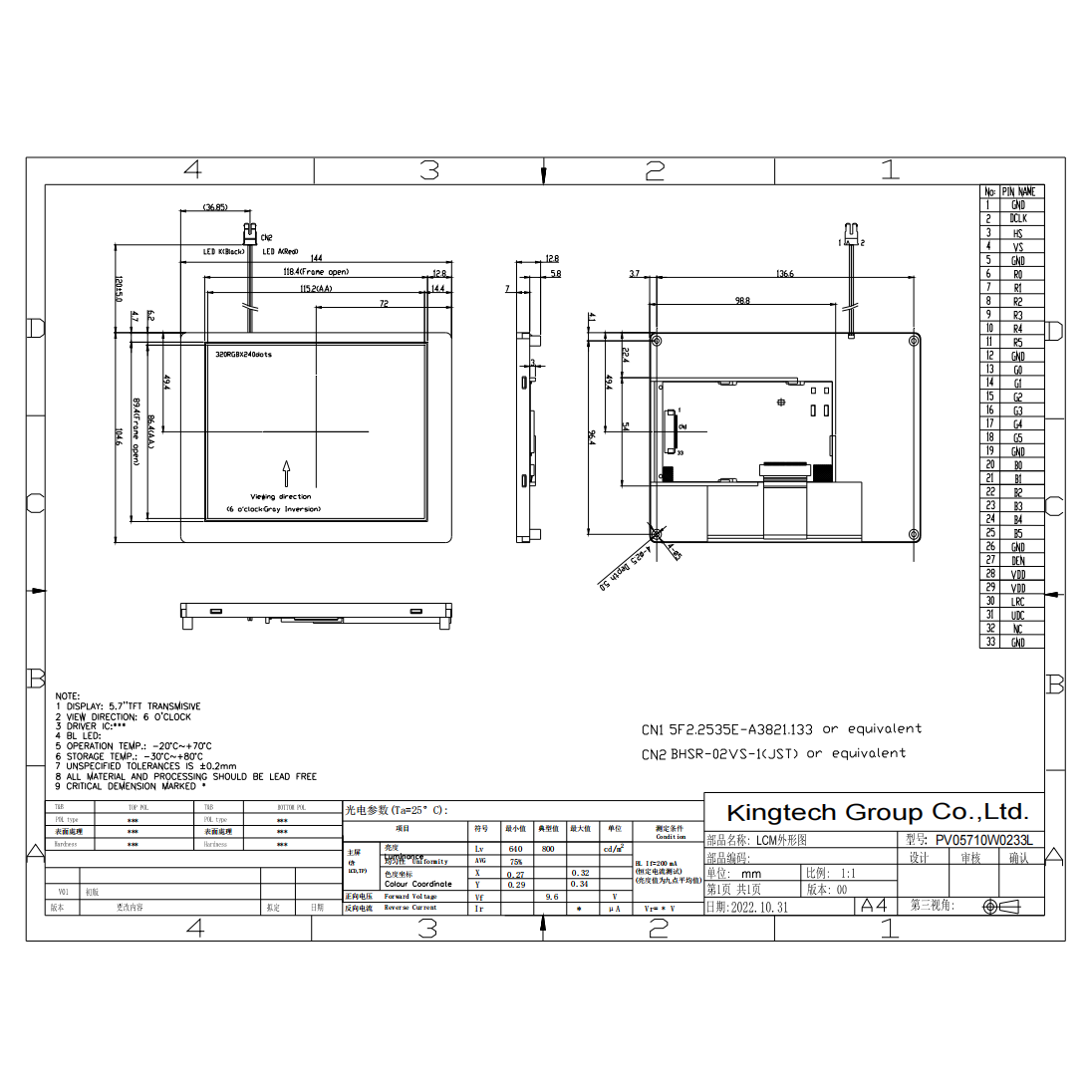

Kingtech 5.7inch TFT colorful LCD module
| Item | 5.7inch TN 320×240 QVGA LCD module |
| Model No. | PV05710W0233L |
| Resolution | 320*240 |
| Outline Dimension (mm) | 104.6*144.0*12.8 |
| Active Area (mm) | 115.2*86.4 |
| Viewing Angle | 6 O’clock |
| Brightness | 800nits |
| Interface | 18bit RGB |
| Backlight | / |
| Driving IC | / |
| PIN No. | 33pins |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch and resistive touch for optional |
| Application | Outdoor application,EV charger,Industrial,Communication equipment |
For product pricing,customization,or other inquiries:
Share to:
- Sunlight readable / High brightness / Outdoor / 800nits
- 7inch TN LCD
- 320x240dots / QVGA
- Resistive touch and capacitive touch for optional
- 4:3
