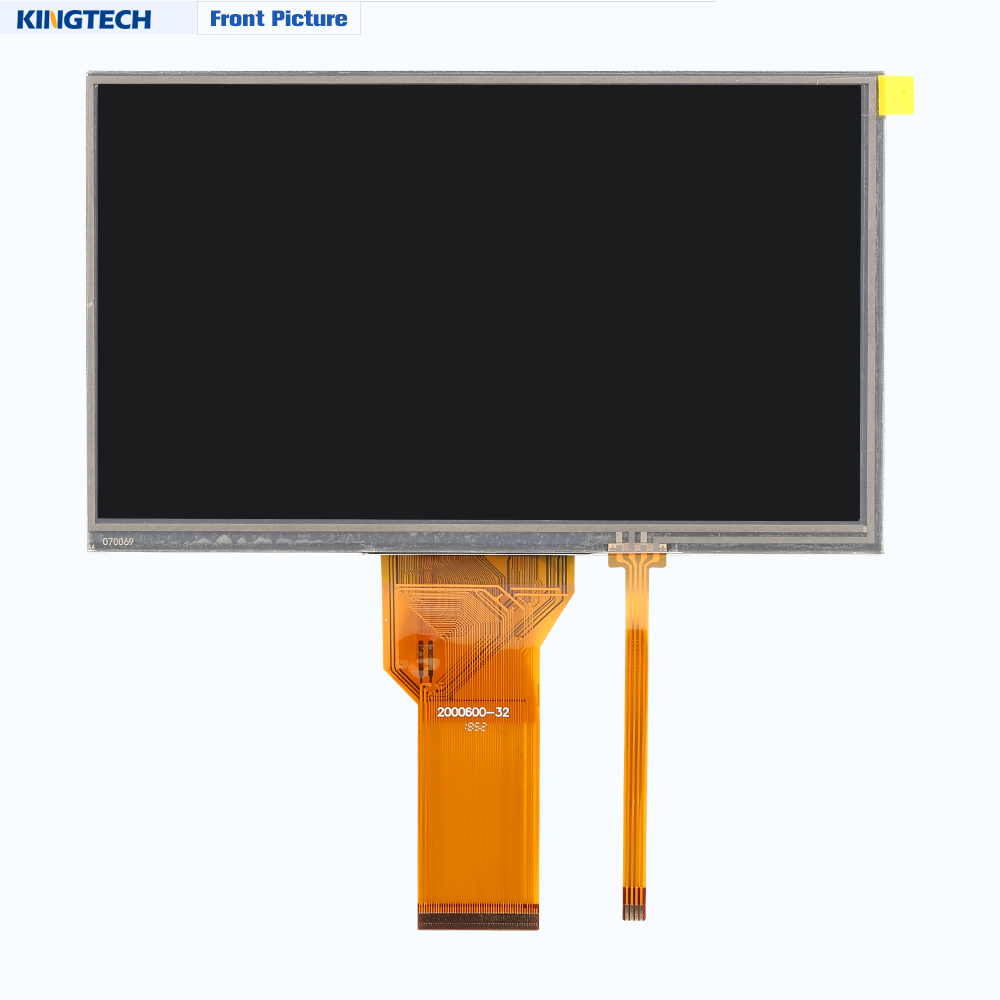

Kingtech 7.0 inch LCD module TN LCD panel
| Item | 7.0 inch TN 800×480 LCD module with RTP |
| Model No. | PV07019LZR40U-R1 |
| Resolution | 800*480 |
| Outline Dimension (mm) | 164.90*100*7.00 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | 12 O’clock |
| Brightness | 1000nits |
| Interface | 24bit RGB (TTL) |
| Backlight | 3*9LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Support resistive touch or capacitive touch |
| Application | Outdoor application, Surveillance video,Transportation Camera, Truck, E-bike, medical, industrial equipment, POS, EV charge etc, Automotive. |
For product pricing,customization,or other inquiries:
Share to:
- High brightness/Sunlight readable/1000nits/Outdoor
- 7inch 800×480/WVGA
- Competitive price
- Resistive touch, Capacitive touch for option
- Designed for outdoor application
