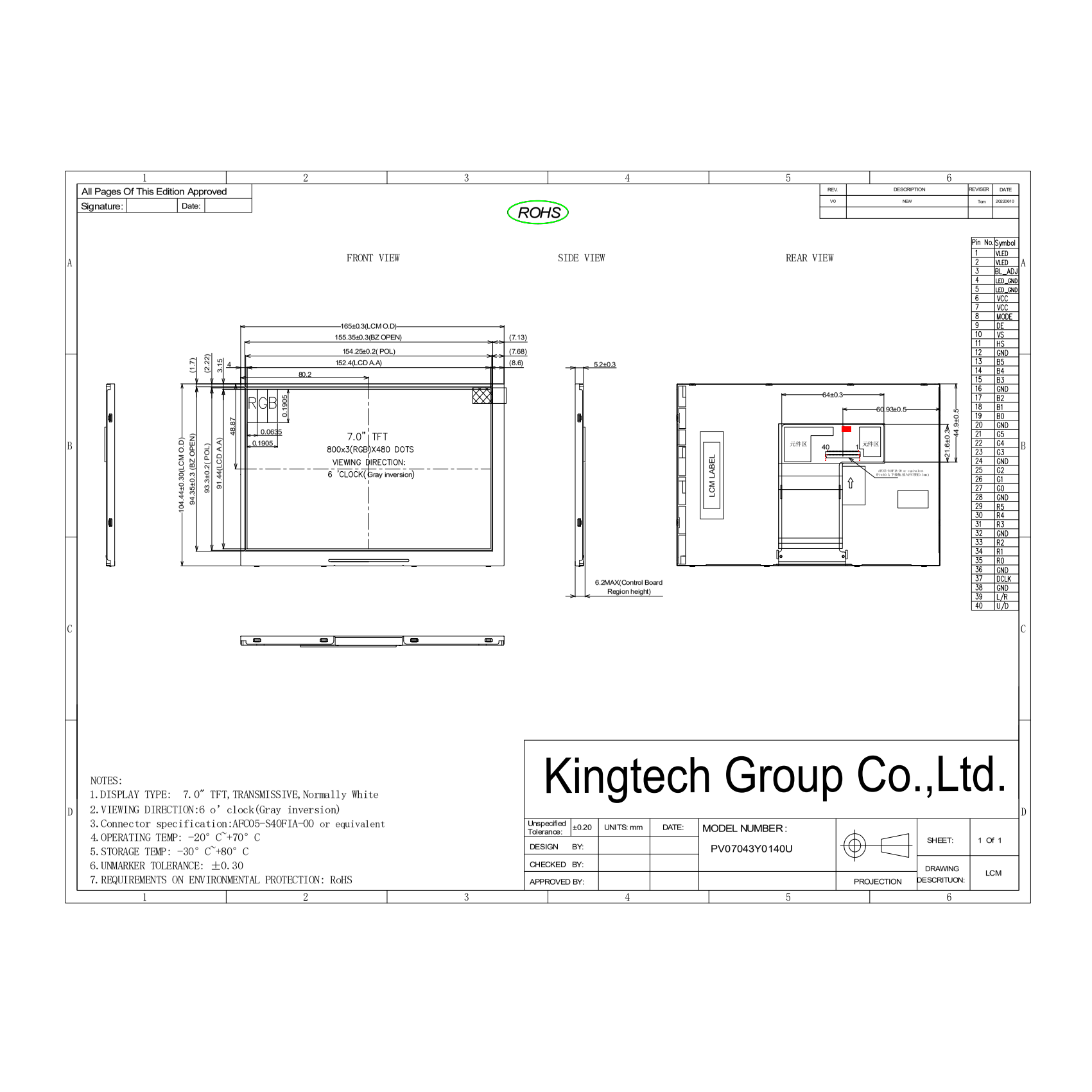

Kingtech 7inch WVGA TN LCD display module
| Item | 7.0 inch TFT 800×480 module display |
| Model No. | PV07043Y0140U |
| Resolution | 800*480 |
| Outline Dimension (mm) | 165*104.44*5.20 |
| Active Area (mm) | 152.40*91.44 |
| Viewing Angle | 6 o’clock |
| Brightness | 550nits |
| Interface | 18bit RGB Interface |
| Backlight | 3*8LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capative touch screen |
| Application | Industrial equipment, small processing equipment, CNC equipment, Medical, ECG monitor, fetal heart rate monitoring, ventilator. |
For product pricing,customization,or other inquiries:
Share to:
- Replacement for Innolux AT070TN83 V.1 and sharp LQ070Y3DG3B_(LD-21305A)
- 7inch TN LCD display module
- 800×480 /WVGA
- 550nits /high brightness/sunlight readable
- 18bit RGB interface
- Support capacitive touch
