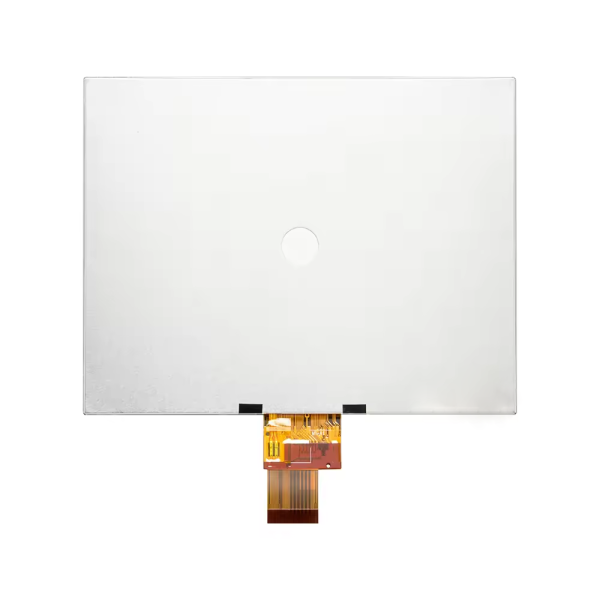

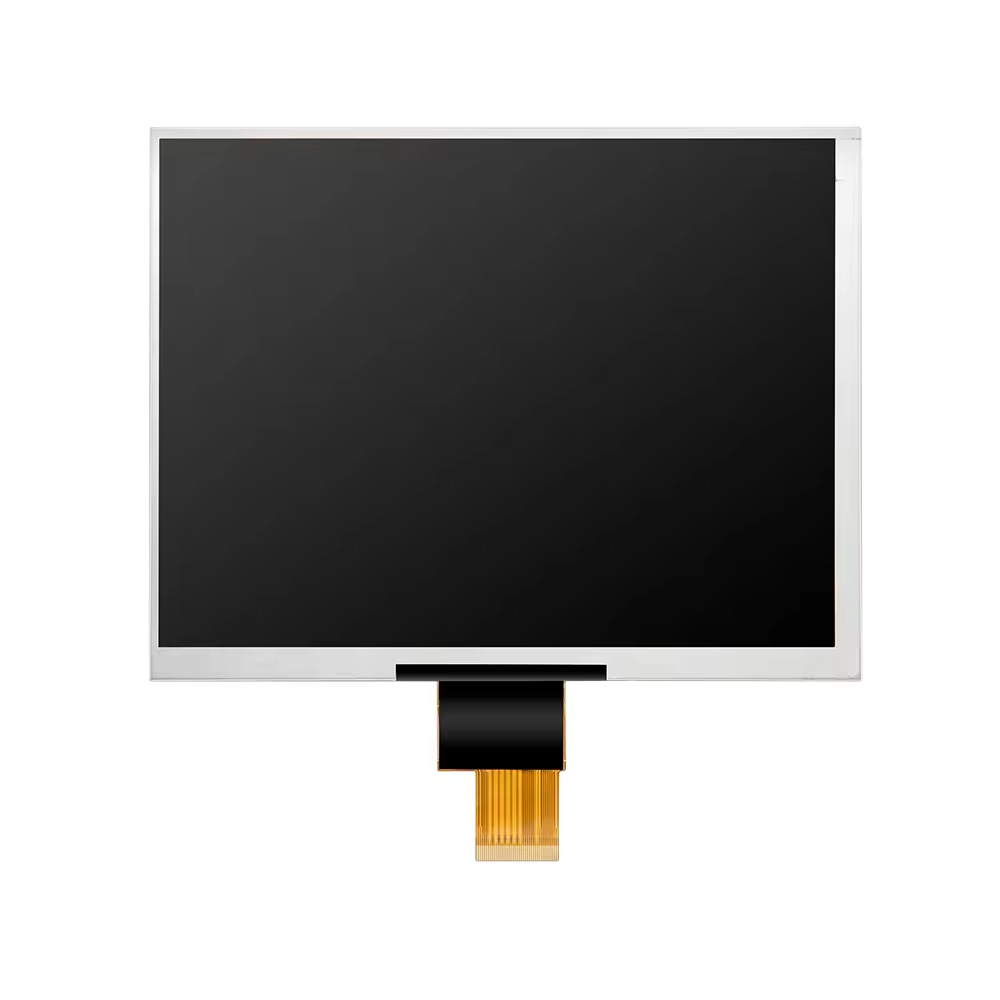

Kingtech 8.0 inch LCD module IPS TFT LCD
| Item | 8.0 inch 1024×768 TFT IPS LCD module |
| Model No. | PV08015D0140R |
| Resolution | 1024*768 |

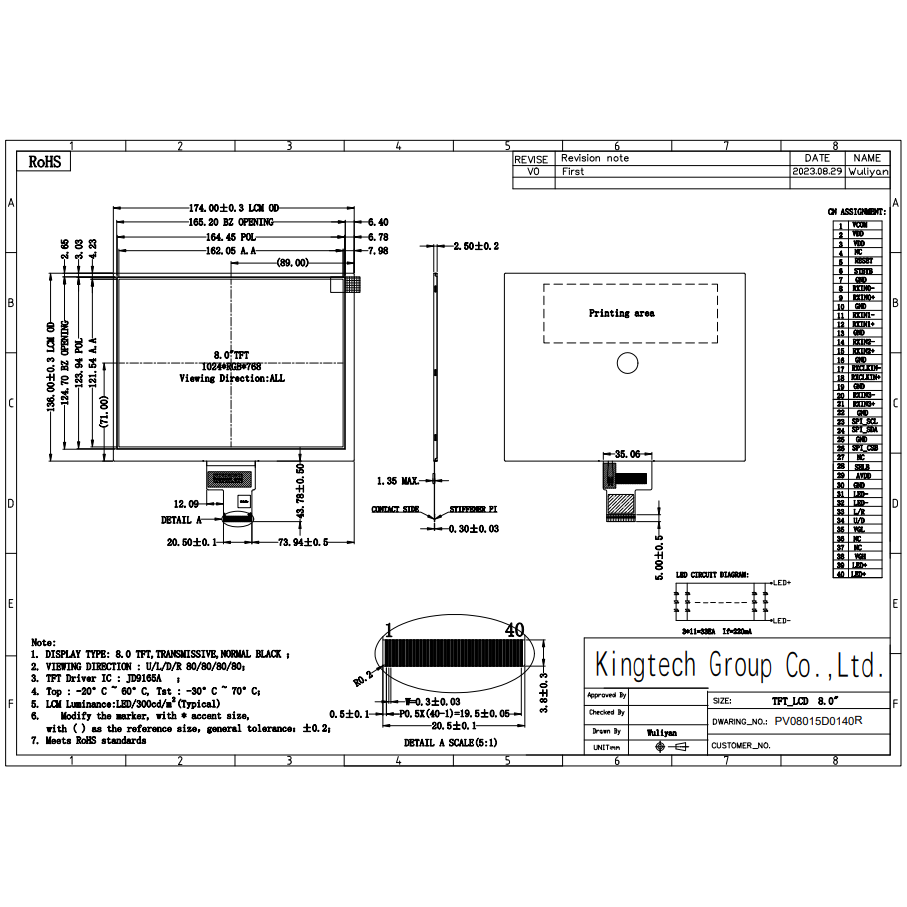

| Outline Dimension (mm) | 174.00*136.00*2.5 |
| Active Area (mm) | 162.05*121.54 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | LVDS |
| Backlight | 3*11LED |
| Driving IC | JD9365A |
| PIN No. | 40 |
| Operating Temperature | -20~60C |
| Storage Temperature | -30~70C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Consumer electronics, smart home, Consumer electronics, Tablet, Self service Device, E-bike, Automotive, etc |
For product pricing,customization,or other inquiries:
Share to:
- 8.0inch 1024*768, good ratio shape, XGA
- Nice Viewing angle/All/Free/Wide/Full/IPS
- Stable supply
- Competitive price
- Consumer electronics
- Commonly used
