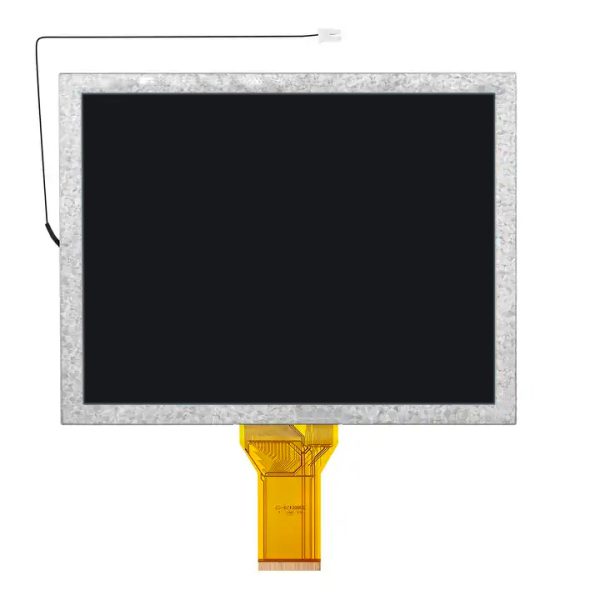

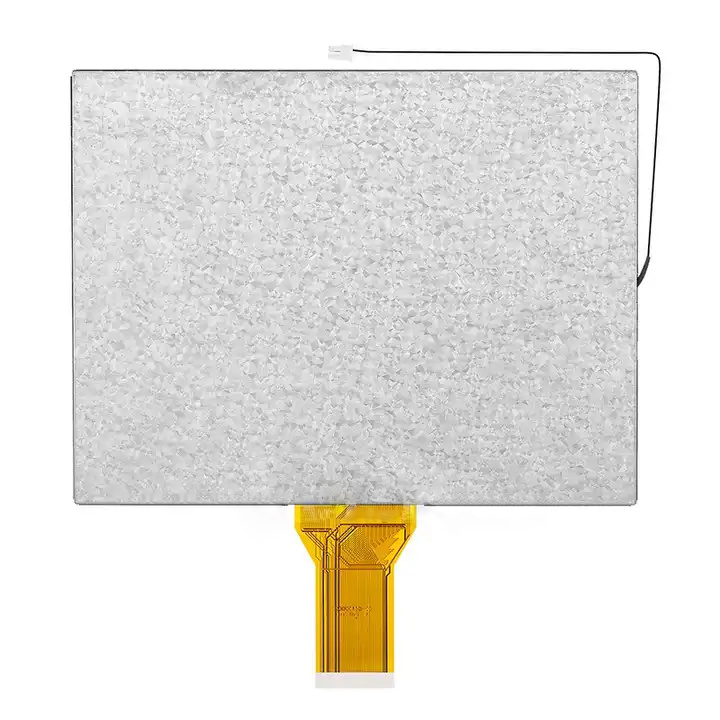

Kingtech 8.0inch LCD module TN LCD panel 800x600dots
| Item | High brightness 8.0 inch TN LCD module with CTP |
| Model No. | PV08011Y0150L-CT |
| Resolution | 800*600 |

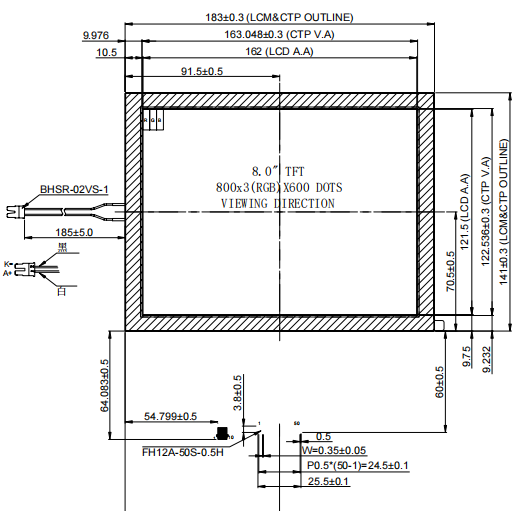

| Outline Dimension (mm) | 183*141*7.92 |
| Active Area (mm) | 162*121.5 |
| Viewing Angle | 12 O’clock |
| Brightness | 850nits |
| Interface | 24-bit Parallel RGB Interface |
| Backlight | 3*10LED |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch and resistive touch optional. |
| Application | Outdoor application, Surveillance video, Transportation Camera, Automative, Self Service device, E-bike, Automotive. |
For product pricing,customization,or other inquiries:
Share to:
- Special resolution-8inch 800x600dots, SVGA
- High brightness/Sunlight readable/1000nits/Outdoor
- RGB, TTL, Digital interface
- Designed for outdoor application
