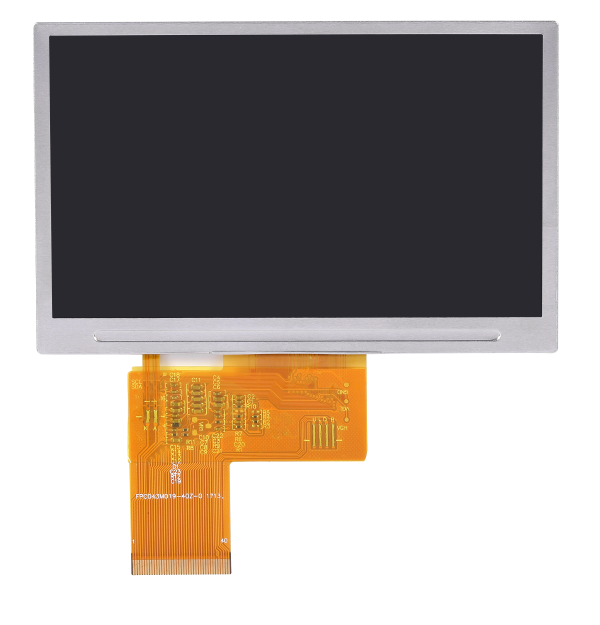

Kingtech PV043021T0140W is a 4.3-inch LCD glass using a-Si TFT-LCD technology
| Item | 4.3inch TFT 800×480 wide temperature module display |
| Model No. | PV043021T0140W |
| Resolution | 800×480/WVGA |
| Outline Dimension (mm) | 105.5*67.2*2.90 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 500nits~1000nits |
| Interface | 24bit RGB |
| Backlight | 5*2LED |
| Driving IC | HX8264D03+HX8664B |
| PIN No. | 40 |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -40℃~85℃ |
| Touch screen | Can custom touch screen based on customer requirements |
| Application | Household appliances, portable navigators, industrial, automatic cooker & coffee machine |
For product pricing,customization,or other inquiries:
Share to:
- IPS TFTLCD display
- 3inch 800×480 /WVGA
- Stable supply
- IPS /Full viewing angle/Wide viewing angle/All viewing angle
- 24bit RGBinterface
- Wide working temperature/-30~+85C
- 500nits brightness /High brightness/ Sunlight readable
- Touch optional
- Household appliances, portable navigators, industrial, automatic cooker & coffee machine
