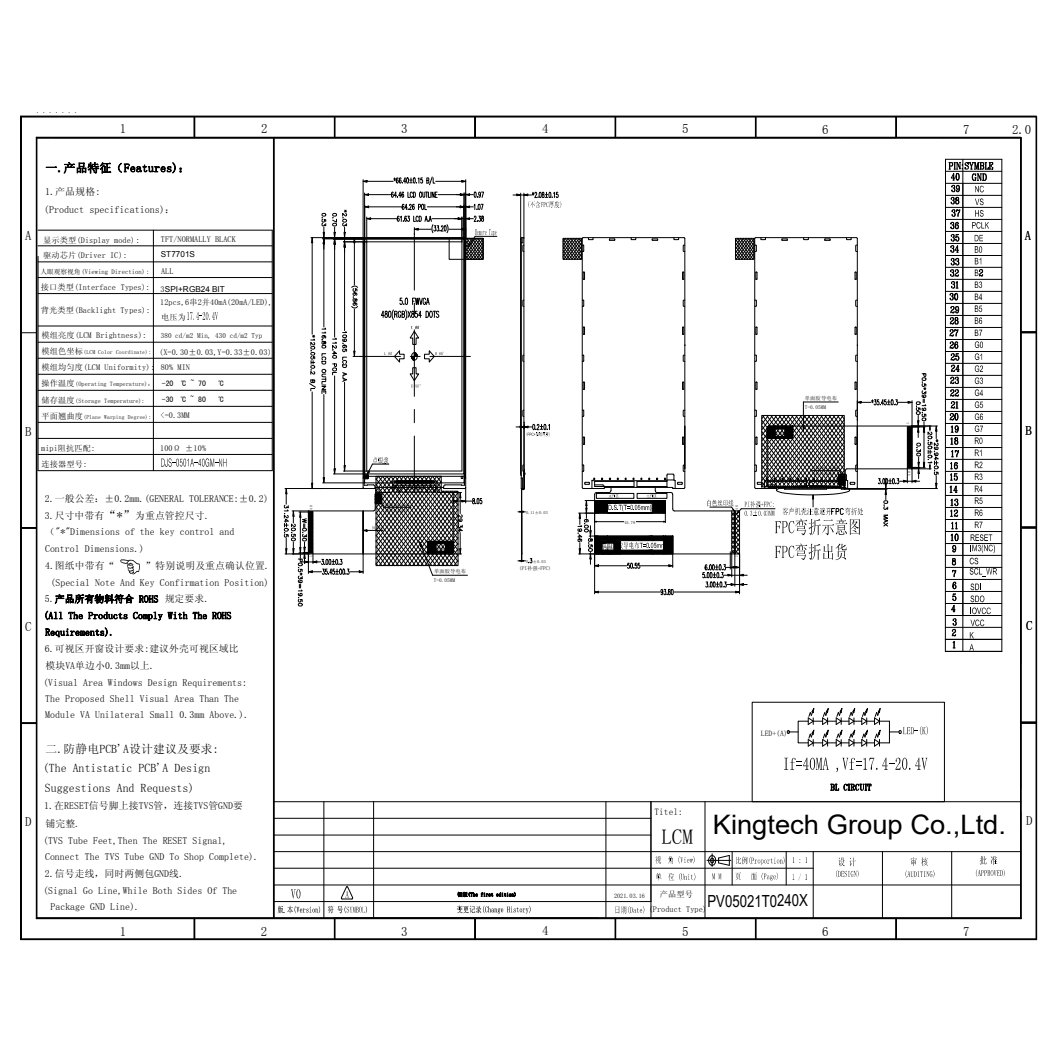

Kingtech PV05021T0240X is a 5.0-inch LCD module product using a-Si TFT-LCD technology.
| Outline Dimension (mm) | 66.4*120.05*2.08 |
| Active Area (mm) | 61.56*109.53 |
| Viewing Angle | All |
| Brightness | 430nits |
| Interface | 3SPI+RGB24 BIT |
| Backlight | 6*2LED |
| Pin nums | 40pins |
| Driving IC | ST7701S |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | without |
| Application | 5.mobile phone,handheld device |
For product pricing,customization,or other inquiries:
Share to:
- 5.0 inch 480×854 display
- 430nits
- Stable supply
- All/Wide/Full/IPS viewing angle
- Applicable for smart home equipment, hand-held device
- Touch Optional
