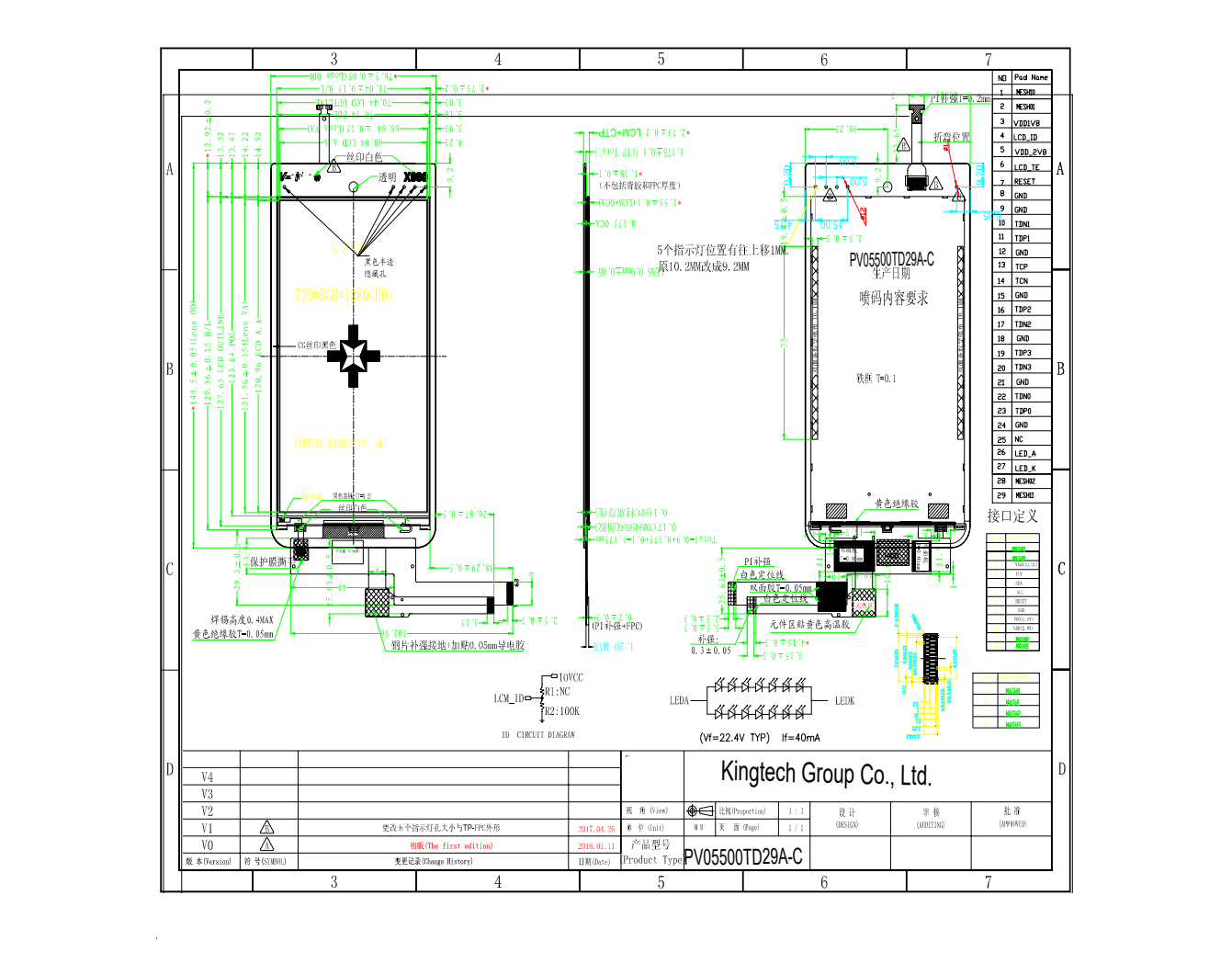

Kingtech PV05500TD29A-C is a 5.5 inch 720*1280 dots LCD module using IPS TFT-LCD technology.
| Item | 5.5inch 720*1280 LCD with capacitive touch |
| Model No. | PV05500TD29A-C |
| Resolution | 720*1280 |
| Outline Dimension (mm) | 76.5*149.5*2.73 |
| Active Area (mm) | 68.04*120.96 |
| Viewing Angle | All |
| Brightness | 360nits |
| Interface | MIPI 4Lane |
| Backlight | 7*2LED |
| Driving IC | HX8394-F210PD250 |
| PIN No. | 29 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch |
| Application | Mobile phone, telecom device, handheld device, video door |
For product pricing,customization,or other inquiries:
Share to:
- 5.5 inch 720*1280 LCD with capacitive touch
- Full/All/Wide viewing angle
- Support MIPI 4 lane interface.
- Capacitive Touch optional
