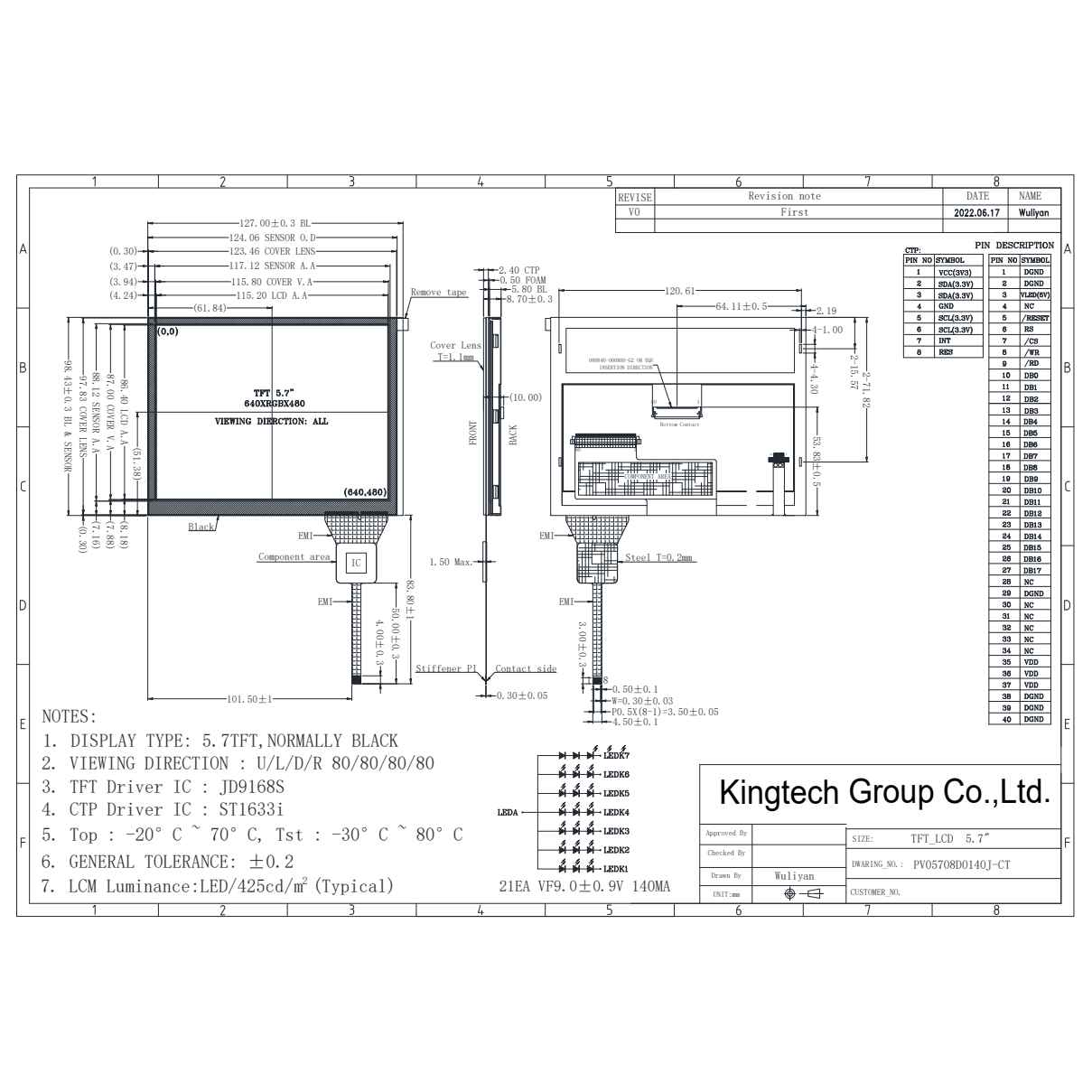

Kingtech PV05708D0140J-CT is a 5.7 inch 640×480 dots TFT LCD module
| Item | 5.7inch 640×480 LCD with capacitive touch LCD module |
| Model No. | PV05708D0140J-CT |
| Resolution | 640*480 |
| Outline Dimension (mm) | 127.00*98.43*8.7 |
| Active Area (mm) | 115.20*86.40 |
| Viewing Angle | All |
| Brightness | 425nits |
| Interface | RGB |
| Backlight | 3*7LED |
| Pin nums | 40 |
| Driving IC | JD9168S+ST1633I |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch optional |
| Application | Industrial, Medical, Smart Home, Home appliance, Meter |
For product pricing,customization,or other inquiries:
Share to:
- 5.7 inch 640×480 LCD with capacitive touch
- Full/All/Wide viewing angle
- Brightness is 425nits
- Capacitive Touch can be customized
