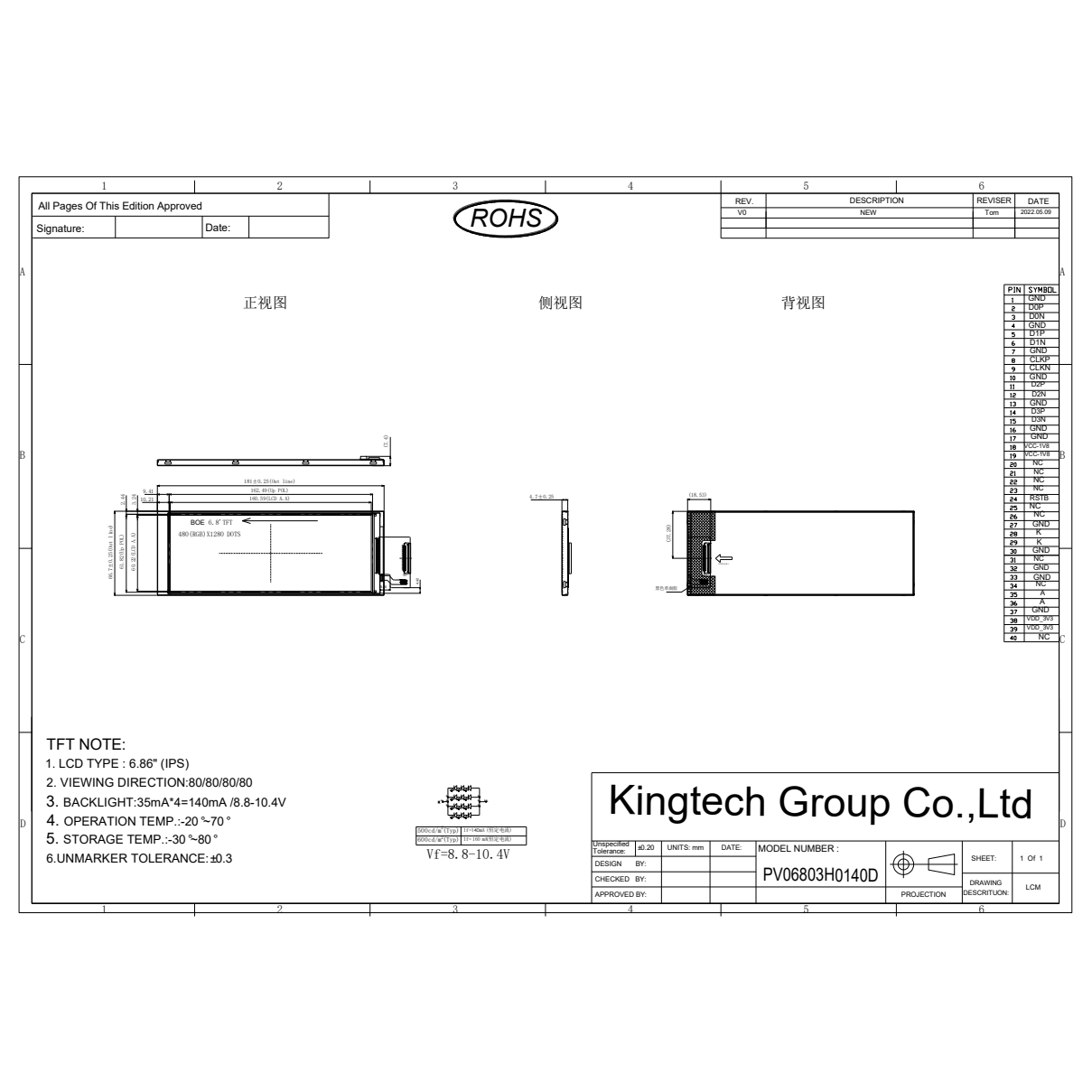

Kingtech PV06803H0140D is bar type TFT LCD display. It is 6.8 inch with a resolution of 480*1280.
| Item | 6.8inch 480×1280 bar type LCD module |
| Model No. | PV06803H0140D |
| Resolution | 480*1280 |
| Outline Dimension (mm) | 66.7*181*4.7 |
| Active Area (mm) | 60.22*160.59 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI |
| Backlight | 3*4LED |
| Driving IC | ICN9707 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch optional |
| Application | Industrial, Medical, refrigerator, washing machine, electric vehicle dashboards, digital electronics, advertising, computer sub-screens, vehicle and other products |
For product pricing,customization,or other inquiries:
Share to:
- Bar type, strip-shaped
- IPS, normally black, negative display type
- Full/Wide/All viewing angle
- Bar type,strip-shaped
- High brightness/Sunlight readable/Outdoor
- Support MIPI interface.
- Touch optional
