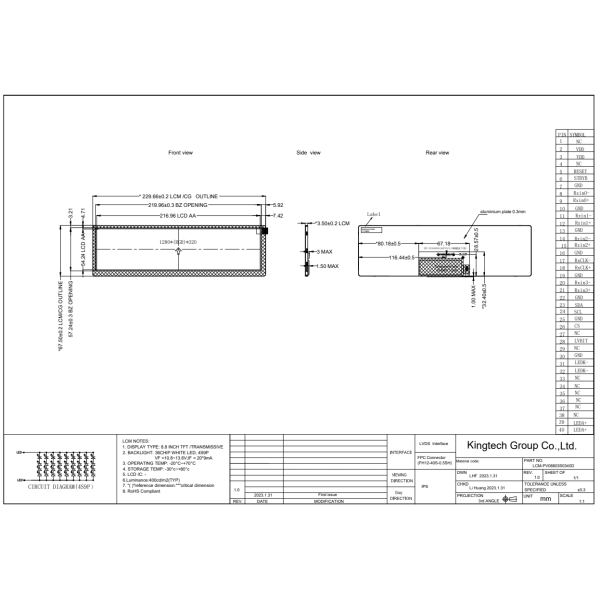

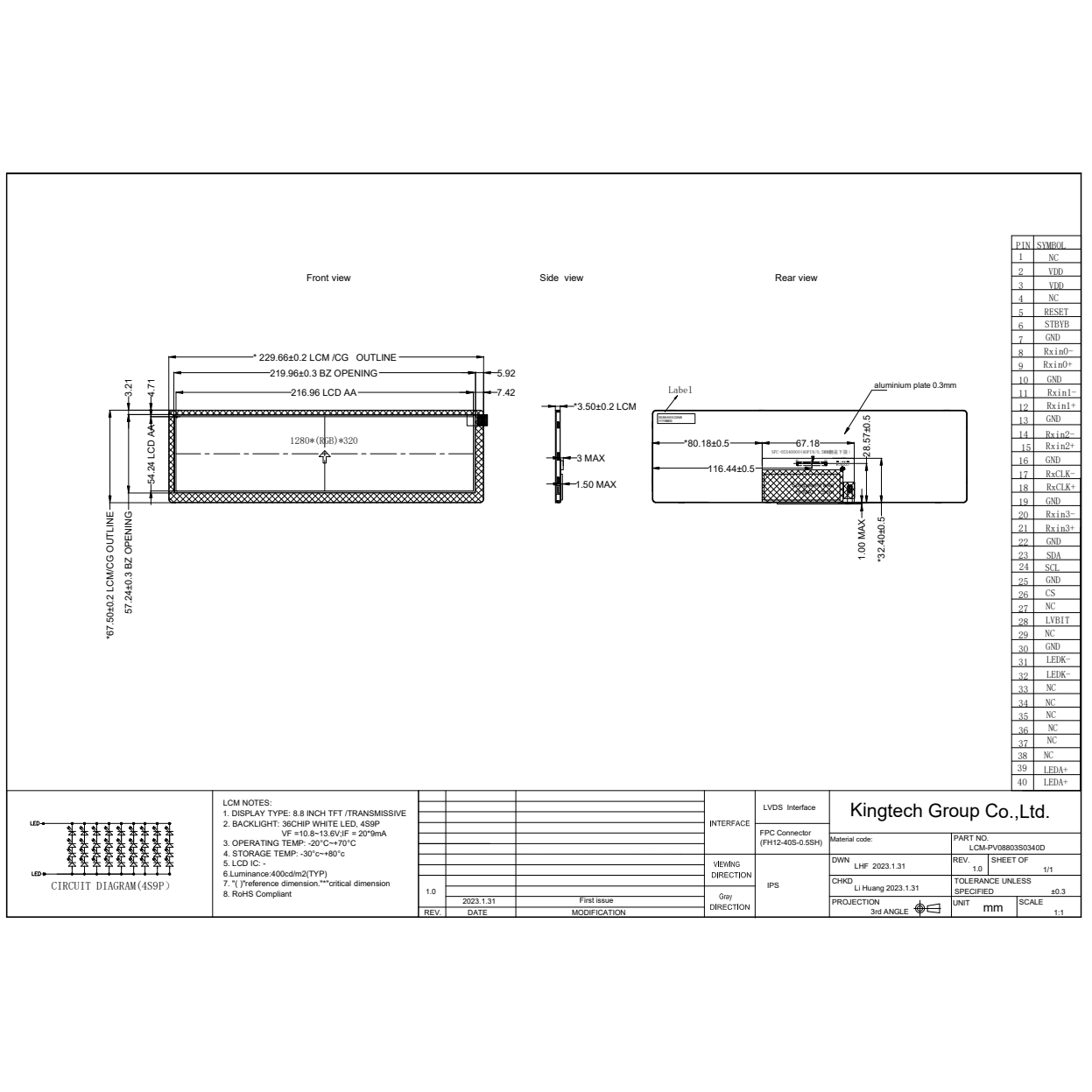

Kingtech PV08803S0340D is a bar type 8.8 inch LCD module. The 8inch TFT LCD screen resolution is 1280*320dots.
| Item | 8.8 inch bar type IPS 1280*320 LCD module |
| Model No. | PV08803S0340D |
| Resolution | 1280*320 |
| Outline Dimension (mm) | 229.66*67.50*3.50 |
| Active Area (mm) | 216.96*54.24 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | LVDS |
| Backlight | 4*9LED |
| Driving IC | EK79202 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitivetouch optional |
| Application | Medical, hand-held device, industrial, advertising, E-bike, meter, vehicle, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer. |
For product pricing,customization,or other inquiries:
Share to:
- Bar type, strip shaped
- 1280x320dots, LVDS
- Full/free/wide/all viewing angle
- Life-time 30000h
