Kingtech wide temperature 8.4 inch LCD module IPS TFT LCD
| Item | 8.4 inch 1024×768 IPS LCD module |
| Model No. | PV08415D0120Q |
| Resolution | 1024*768 |

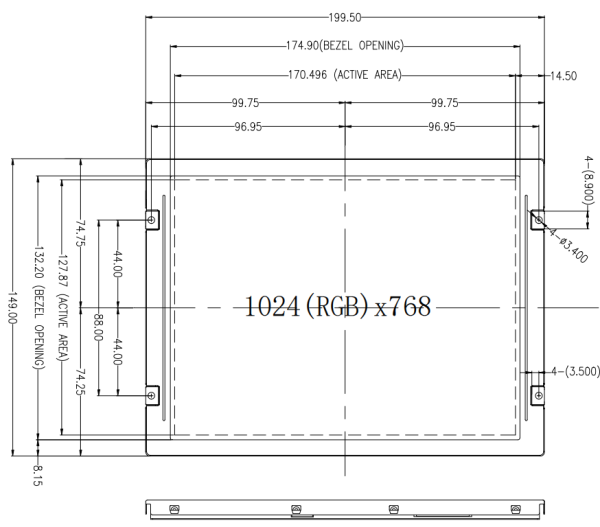

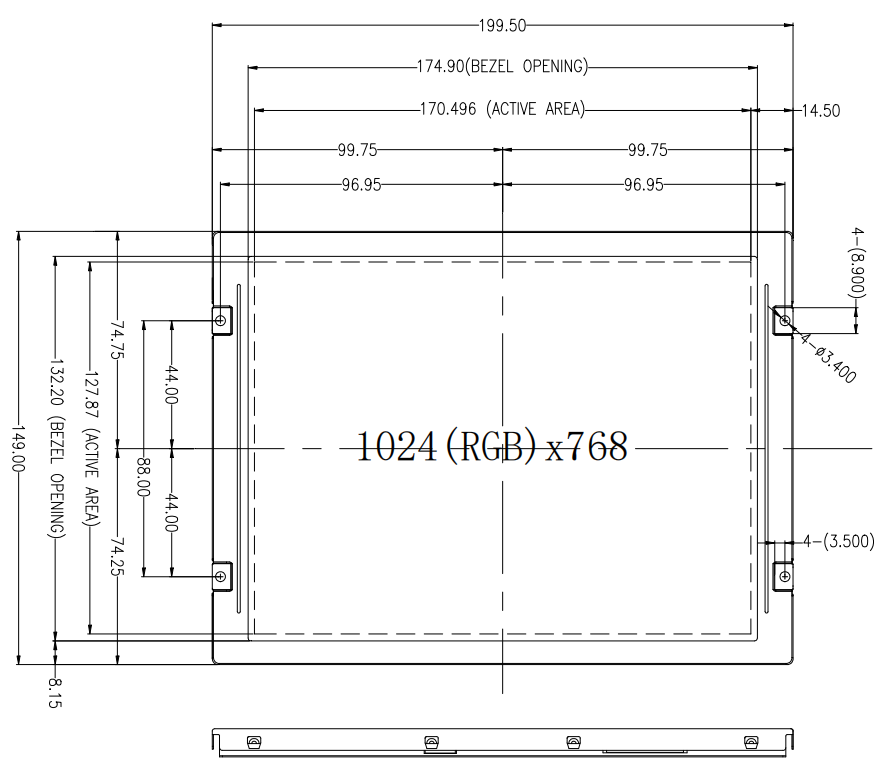

| Outline Dimension (mm) | 199.50*149.00*9.7 |
| Active Area (mm) | 170.49*127.87 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | 8bit LVDS |
| Backlight | / |
| Driving IC | HX8290*2+HX8695*1 |
| PIN No. | 20 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Outdoor application, Surveillance video, Transportation Camera, Automotive. |
For product pricing,customization,or other inquiries:
Share to:
- Wide working temperature, -30-80C
- Special Size-8.4inch
- Landscape, Horizontal
- LVDS interface
- Full/All/Free/Wide/IPS Viewing angle
- Designed for harsh environment
- High reliable
- Life-time 20000h
