Lanscape 7 inch sunlight readable lcd display
| Item | 7 inch 800*480 TFT module display |
| Model No | PV07028LSB40D |
| Resolution | 800×480 |
| Outline Dimension | 165*104*5.5*7.21 |
| Active Area(mm) | 152.40*91.44 |
| Interface | RGB 18 BITS |
| Viewing Angle | all |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 500 |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
4.3 inch 800×480 resolution TTL/RGB interface IPS lcd display
1.PV07028LSB40D mainly application for Industrial ，medical equipment .
2.It with 800X480 resolution , TTL/RGB interface ,wide work temperature -30~85 degrees , square 1:1 pixel
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

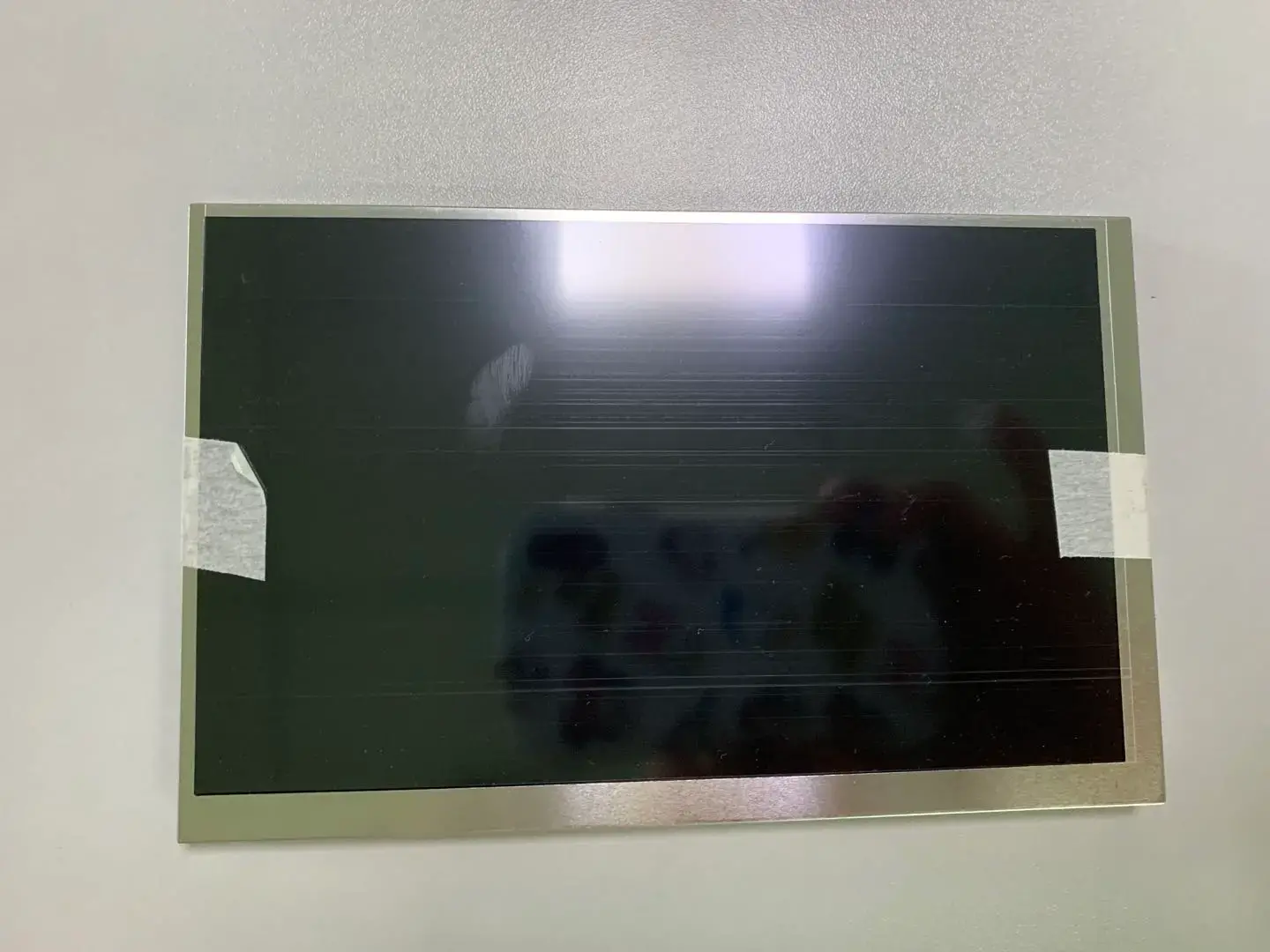

7 inch sunlight readable lcd display Front View :

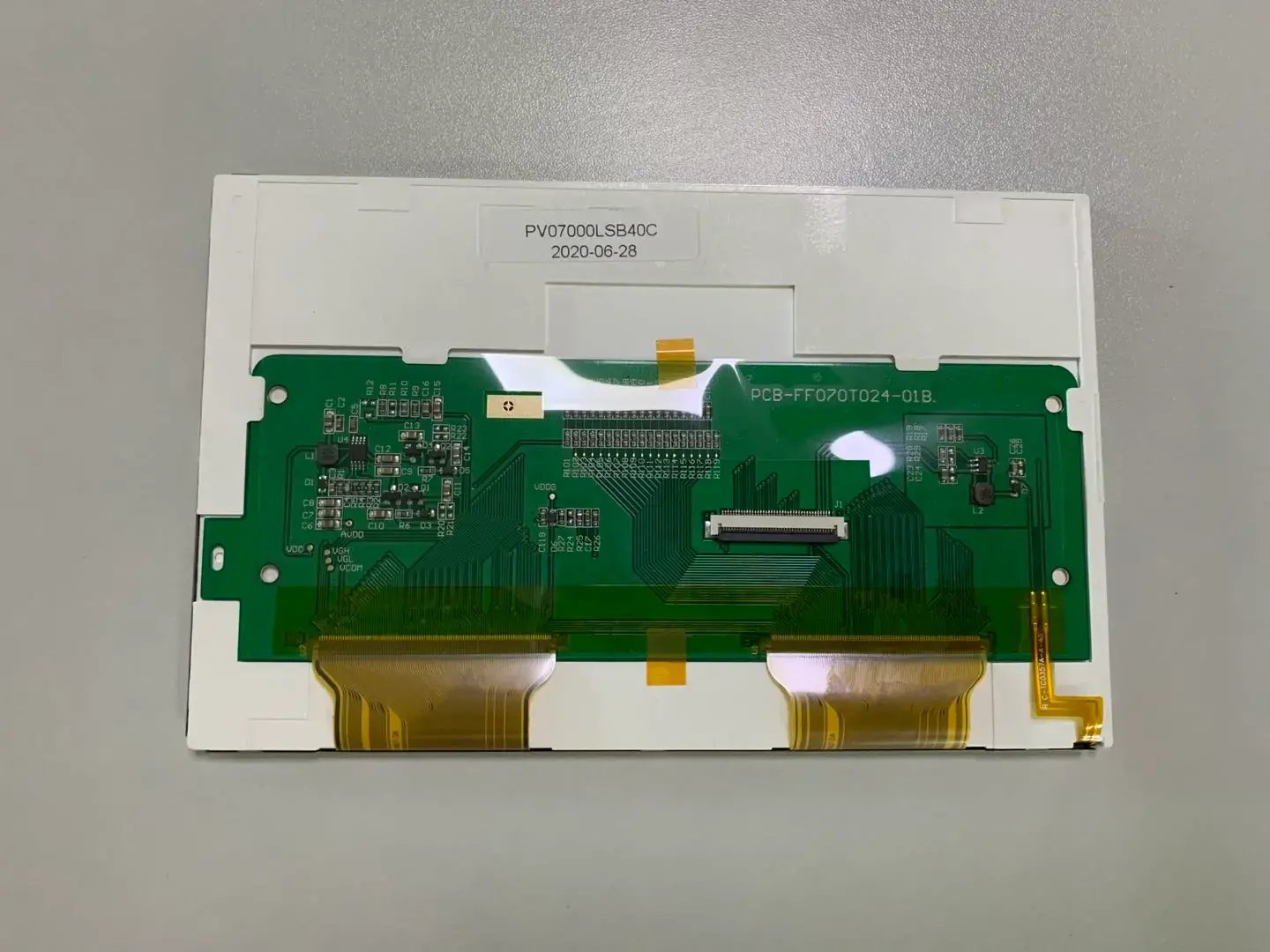

7 inch sunlight readable lcd display Back view

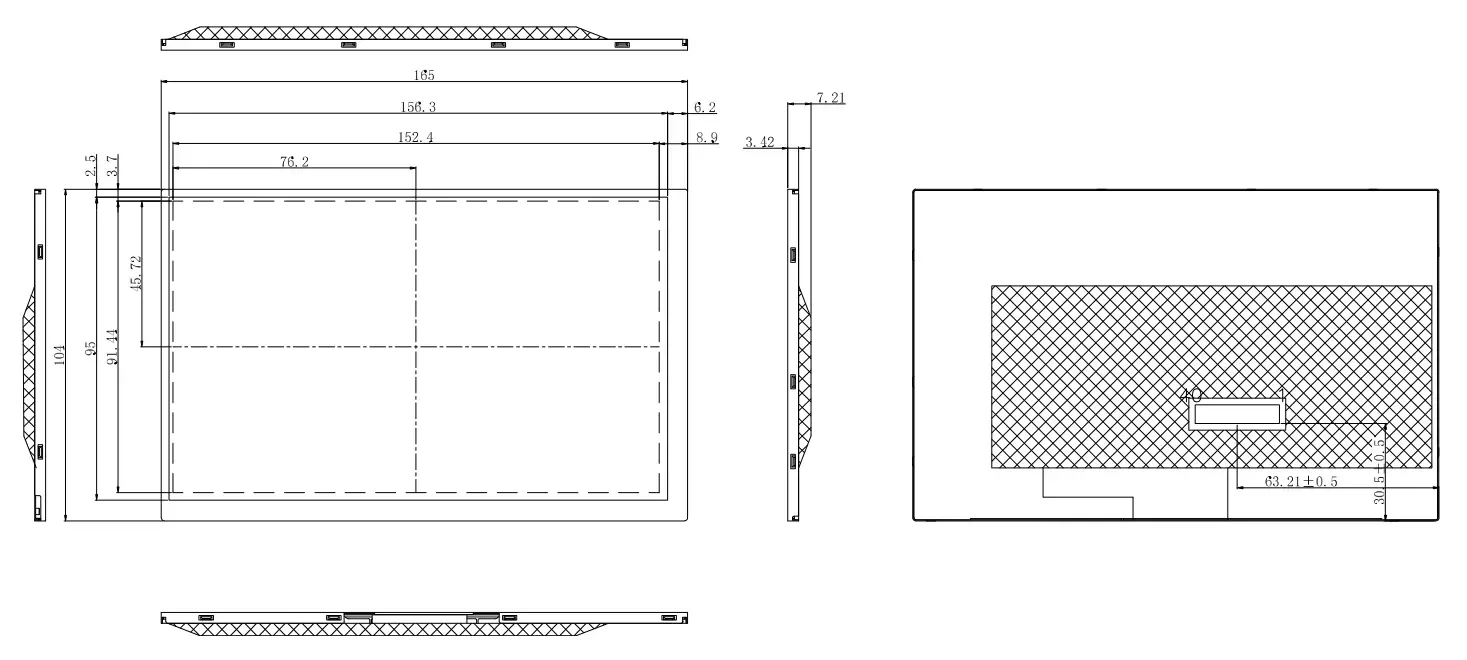

7 inch sunlight readable lcd display Machine Drawing
