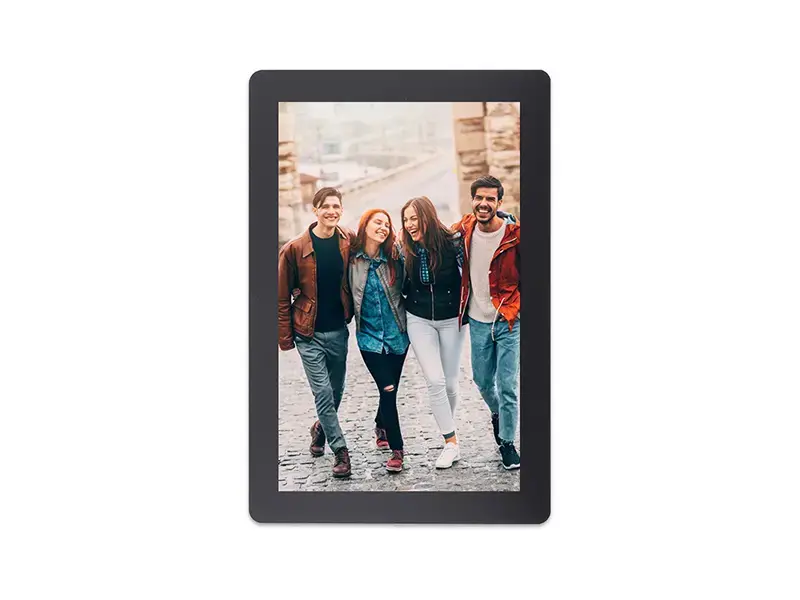

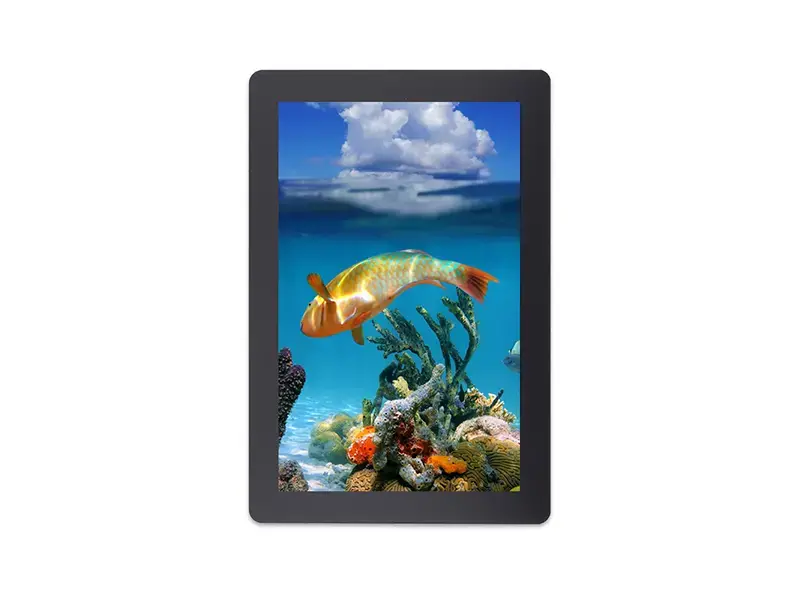

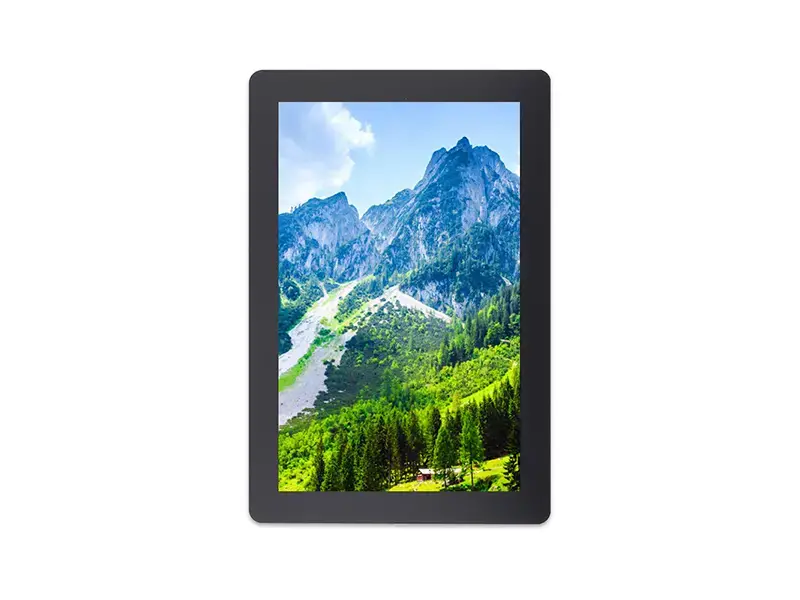

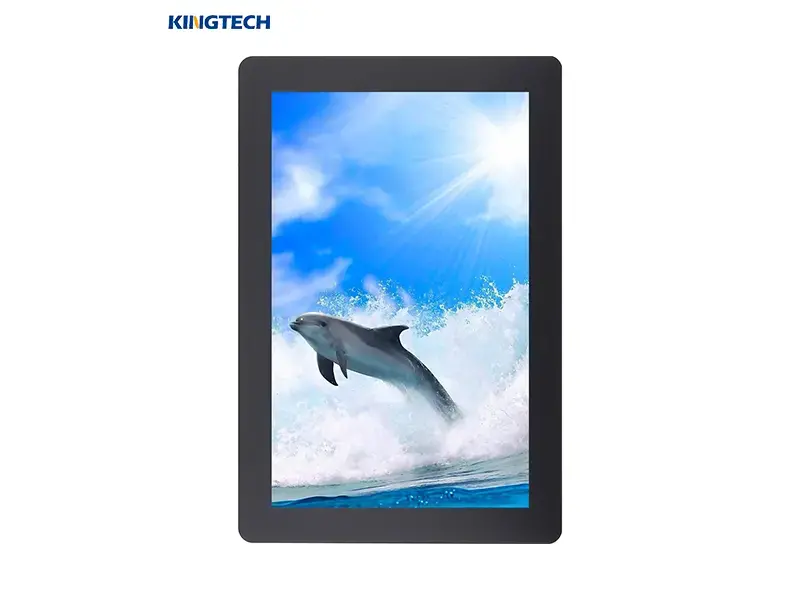

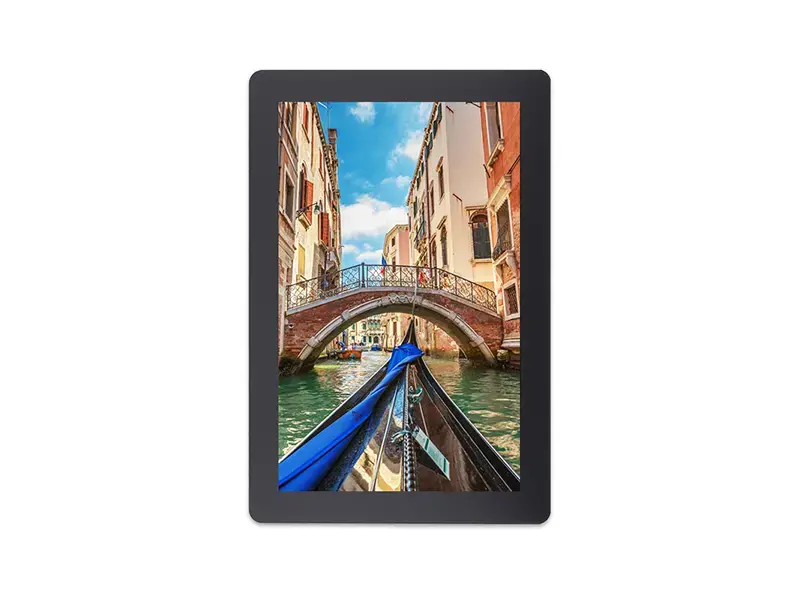

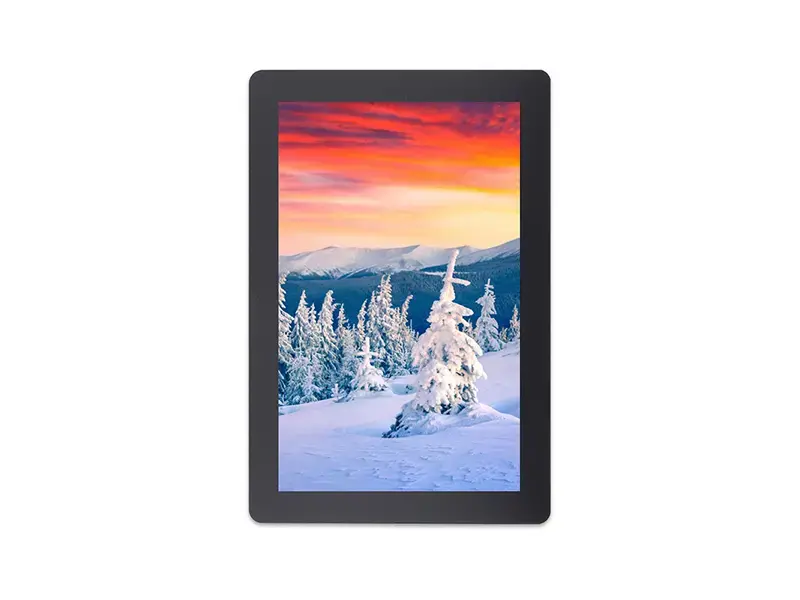

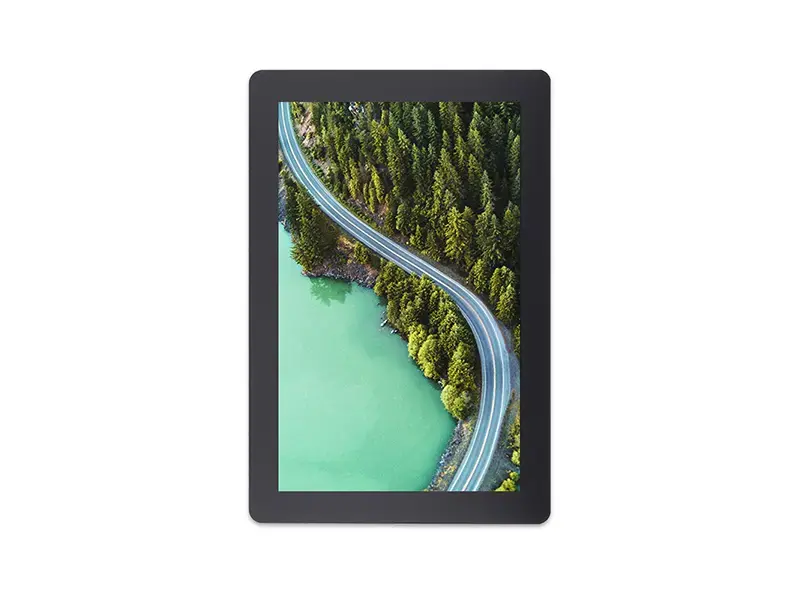

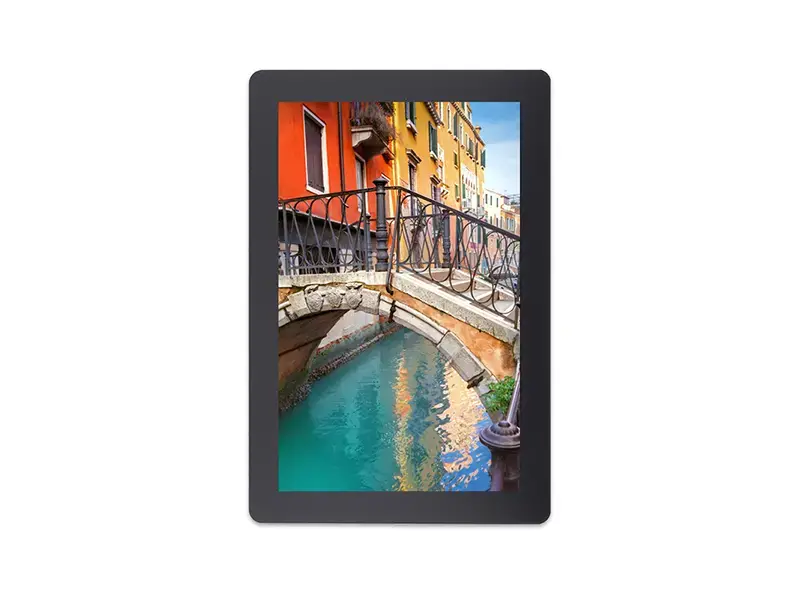

MIPI 8 inch 800×1280 resolution IPS capacitive touch screen
| Item | 8 inch 800×1280 MIPI LCD display |
| Model No | PV08002TD25E-C |
| Resolution | 800×1280 |
| Outline Dimension | 125.6*231.6*4.86 |
| Active Area(mm) | 107.64*172.22 |
| Brightness | 380nits |
| Viewing Angle | All |
| Interface | MIPI 4 LANE |
| Driving IC | JD9366AB |
| PIN | 35 |
| Operating Temperature | -10 to +60℃ |
| Storage Temperature | -20 to +70℃ |
| Touch | Capacitive touch |
For product pricing,customization,or other inquiries:
Share to:
8.0 inch 800×1280 IPS MIPI vertical LCD with capacitive touch
1. PV08002TD25E-C mainly application for logistics device , Industrial device .
2. It with all viewing (IPS) , MIPI 4 LANE interface , JD9366AB driver IC, 380nits brightness,existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for logistics device, Industrial, medical application .
8 inch 800×1280 MIPI LCD with capacitive touch

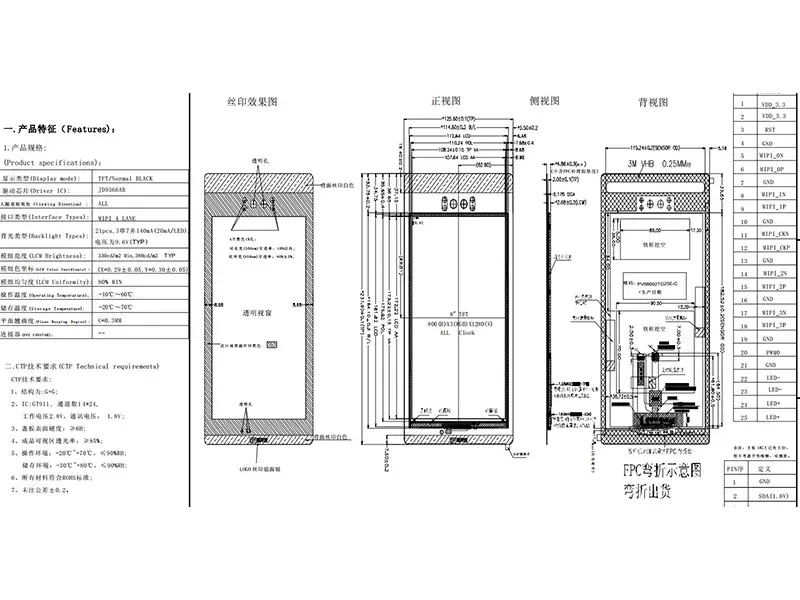

8 inch 800×1280 MIPI LCD with capacitive touch Machine Drawing
New Tab content 3
8.0 inch 800×1280 IPS MIPI vertical LCD with capacitive touch
1. PV08002TD25E-C mainly application for logistics device , Industrial device .
2. It with all viewing (IPS) , MIPI 4 LANE interface , JD9366AB driver IC, 380nits brightness,existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for logistics device, Industrial, medical application .
