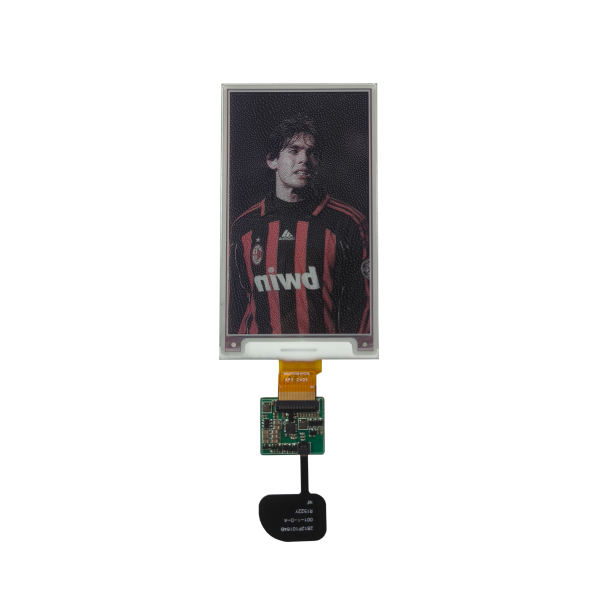

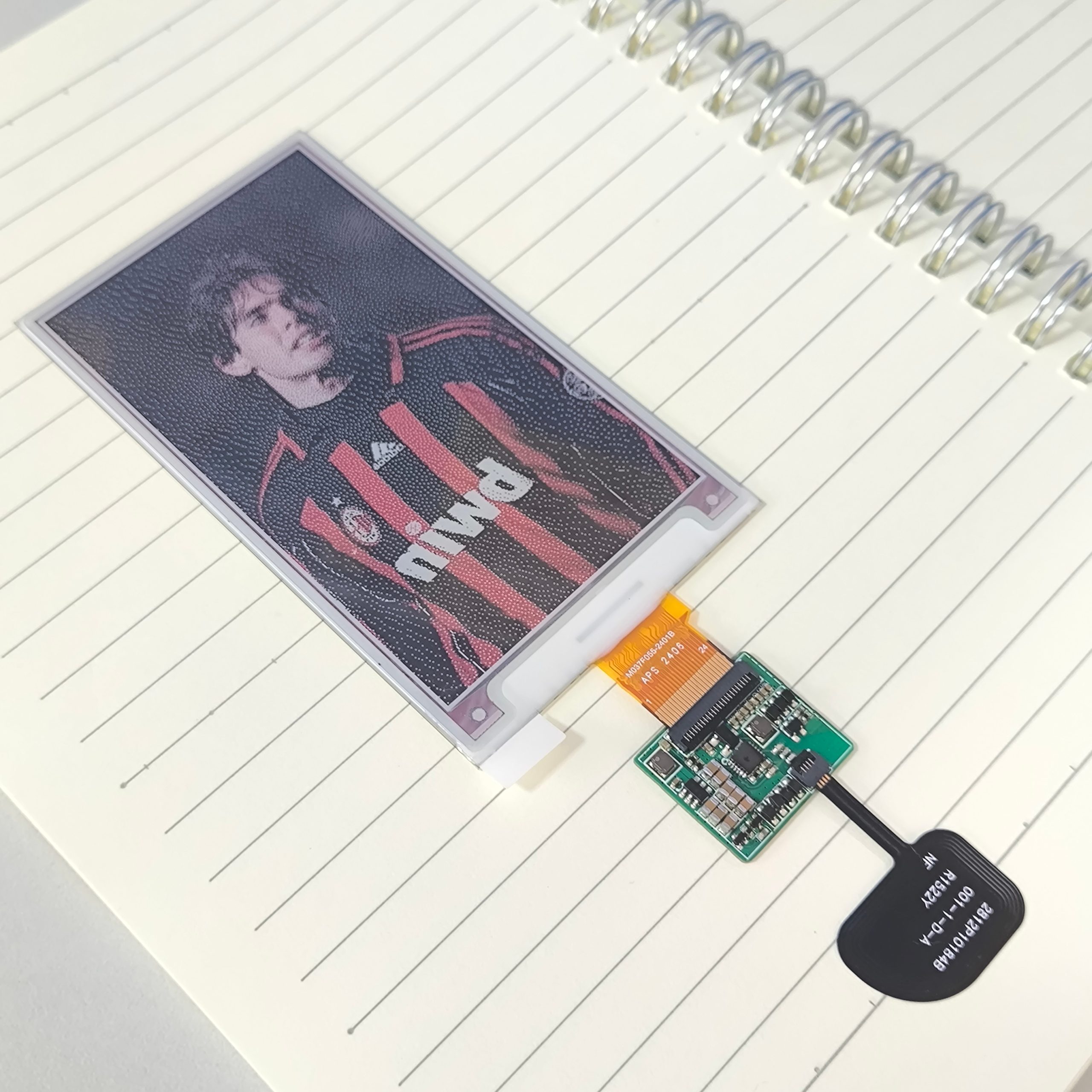

nfc e ink phone case 3.7 inch e-paper ink screen phone case ink
| No. | ltem | Specification |
| 1 | Panel Size | 3.7” inch |
| 2 | Number of Pixels | 240(H)x416(V) |
| 3 | Panel Size | 53(H)x92.99(V)x0.9(D) mm |
| 4 | Border | 48.04(H)x82.54(V)mm |
| 5 | Active Area | 47.04(H)x81.536(V)mm |
| 6 | Pixel Pitch | 196(H)x196(v)um |
| 7 | PPI | 130 |
| 8 | Display Colors | 4-Color(Black/hite/Red/Yellow) |
| 9 | Display Mode | Electrophoretic Bitmap Display |
| 10 | Interface | 3-wire SPl / 4-wire SPl |
| 11 | Driver lC | JD79663AA |
| 12 | Bi-stable state | No power supply is required for the end ofimage refresh |
| 13 | Operation Temperature | 0℃~+40℃ |
| 14 | Storage Temperature | -25℃~ +60℃ |
| 15 | Weight | 8.9g +0.2g |
For product pricing,customization,or other inquiries:
Share to:
- 3.7 inch
- e-ink/e-paper with NFC
- 8.9g ±0.2g
