OTA5180A 3.5 inch touch screen display lcd 480×272

Item	3.5inch 480×272 TFT touch screen
Model No	PV03501TD40B-R
Resolution	480×272
Outline Dimension	86.80(W)x56.50(H)x3.90(T)
Active Area(mm)	77.79(W)x43.52(H)
Interface	24bit RGB interface
Viewing Angle	6:00
Driving IC	OTA5180A
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	250nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

3.5 inch 480×272 resolution RGB interface LCD with resistive touch
1.PV03501TD40B-R mainly application for handheld device
2.It with 480×272 resolution , 24-bit RGB interface, OTA5180A Driver IC, 250nits brightness.
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ，medical application.

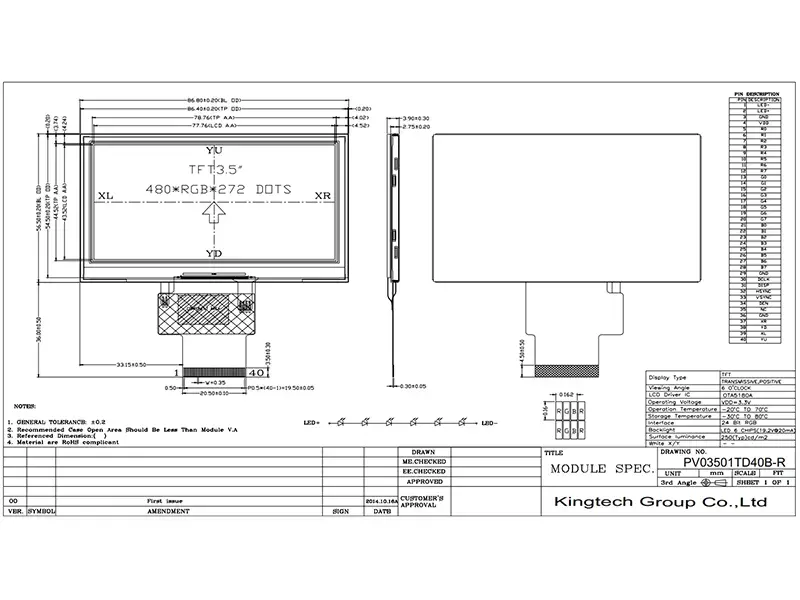

3.5inch 480×272 TFT touch screen Front view

PV03501TD40B-R
