ST7701S mipi ips 480×640 2.8 inch tft touch shield

Item	480×640 2.8inch TFT LCD display
Model No	PV02811RJ24L-C
Resolution	480×640

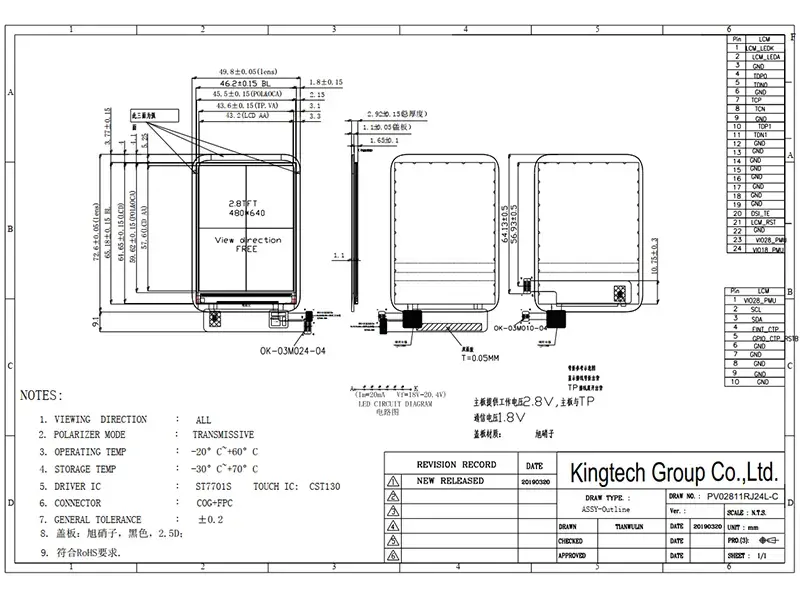

Outline Dimension	46.2(H) ×65.18(V)×2.92(T)
Active Area(mm)	43.2 (H)×57.6(V)
Interface	MIPI 2line
Viewing Angle	All
Driving IC	ST7701S
Display Mode	IPS / Transmissive / Normally Black
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	250nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

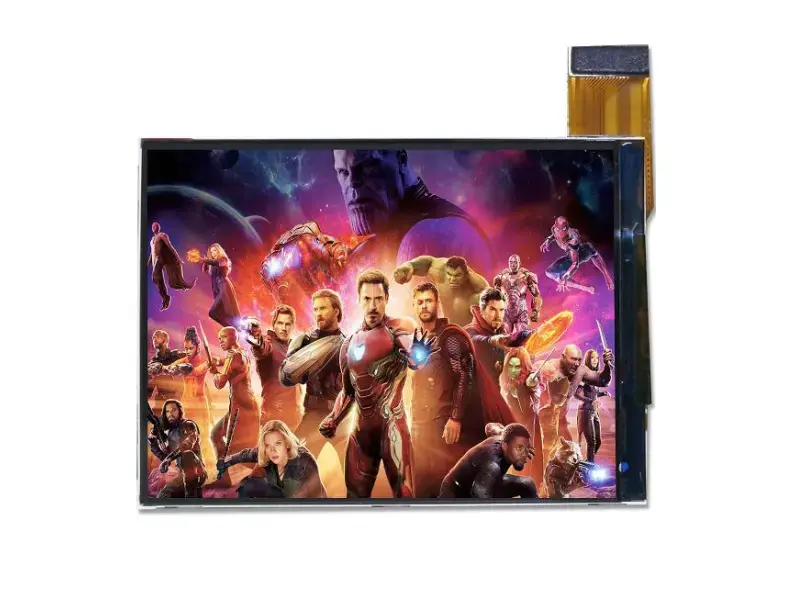

2.8 inch 480×640 VGA resolution MIPI IPS TFT capacitive touch screen

1. PV02811RJ24L-C mainly application for hand held device .
2. It with 480×640 resolution, MIPI 2line interface, ST7701S Driver IC, 250nits brightness, IPS/All/Full/Free viewing angle, existing capacitive touch panel .
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

2.8 inch MIPI interface capacitive touch display module

PV02811RJ24L-C
