Home > Products > Sunlight readable 3.5 inch 320×480 ressolution lcd display

Sunlight readable 3.5 inch 320×480 ressolution lcd display

Item	3.5 inch 320×480 IPS LCD display
Model No	PV0355B7Z0
Resolution	320×480
Outline Dimension	54.4682.943.65
Active Area(mm)	48.96*73.44
Brightness	1000nits
Viewing Angle	All
Interface	16-Bit MCU
Driving IC	ILI9488
PIN	45
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Touch	Can custom capacitive/resistive

For product pricing,customization,or other inquiries:

3.5 inch 320×480 IPS sunlight readable TFT LCD display
1. PV0355B7Z0 mainly application for Industrial ,medical smart home equipment, E-bike industry and etc
2. It with 320×480 resolution, MCU /RGB/SPI interface, IPS /ALL/full/free viewing angle, 2000nits high brightness, ILI9488 Driving IC .
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application. An it can be well used for both indoor and outdoor

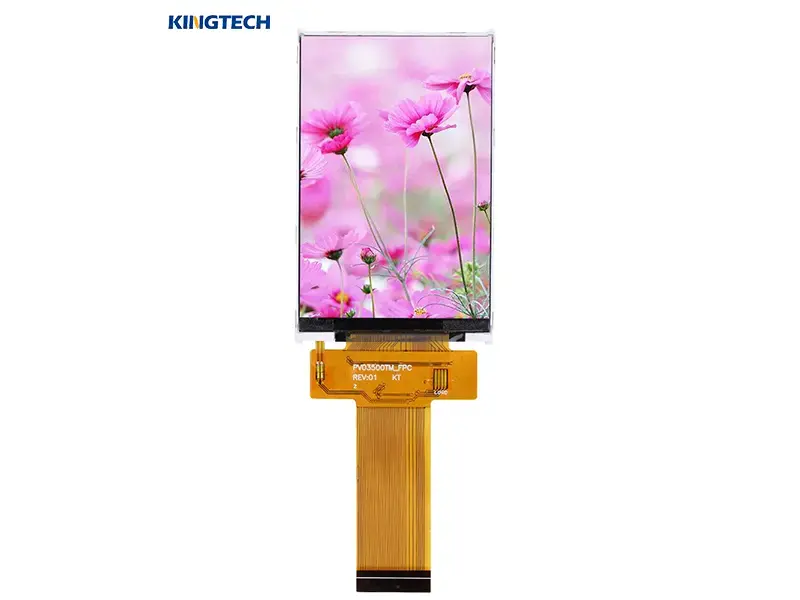

3.5 inch 320×480 high brightness IPS display front view
