Home > Products > Touch screen 7 inch 800×480 RGB interface 400nits TFT LCD with capacitive panel

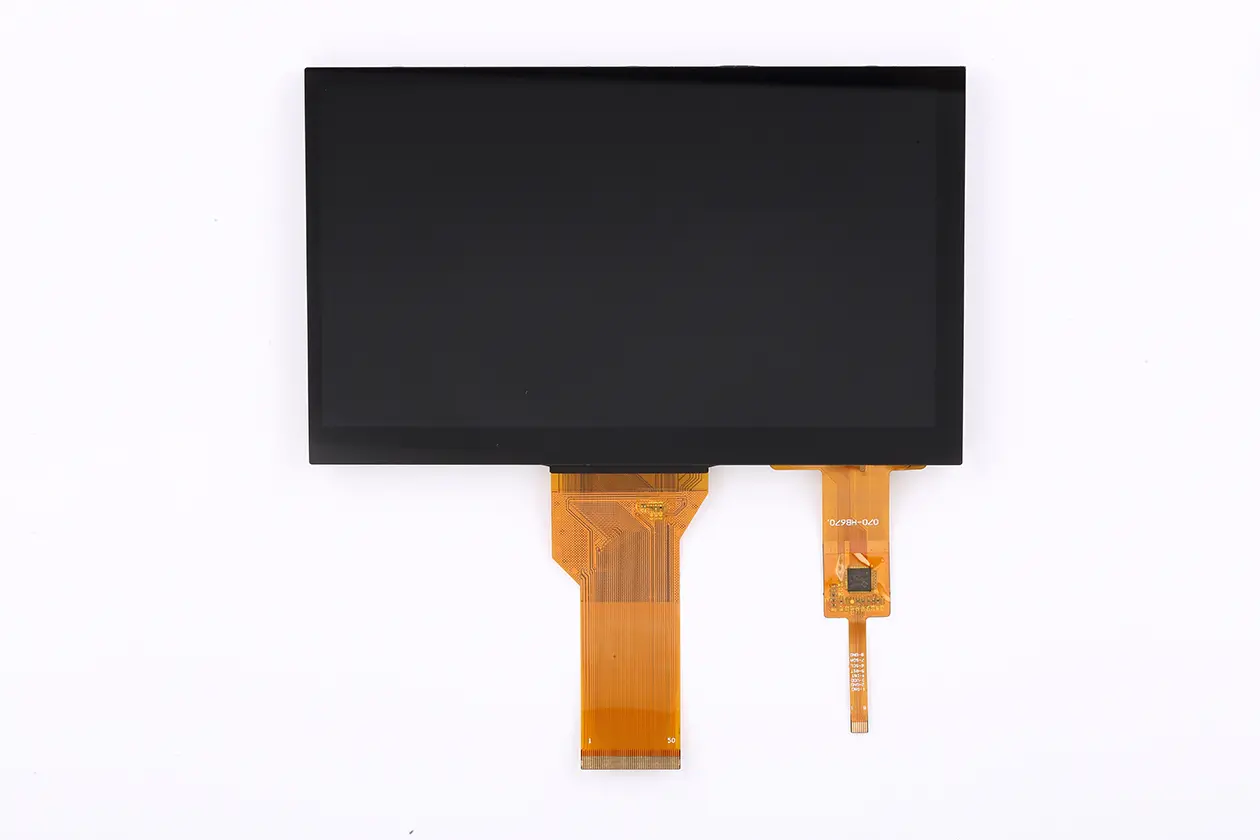

Touch screen 7 inch 800×480 RGB interface 400nits TFT LCD with capacitive panel

Item	7inch 800×480 50pin capacitive touch screen
Model No	PV0705YX50E-CO
Resolution	800×480
Outline Dimension	165100.15.7 mm
Active Area(mm)	154.08*85.92 mm
Interface	RGB Interface
Viewing Angle	All
LED life	30000h
Display Mode	TN / Transmissive / Normally white
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃ to +80℃
Brightness	500nits
Touch screen	Can custom capacitive touchscreen
Board	Convert Board

For product pricing,customization,or other inquiries:

7 inch 800×480 resolution RGB interface 500nits TFT LCD display with capacitive touch

1. PV0705YX50E-CT mainly application for Industrial ，medical equipment .
2. It with 800×480 resolution , 500nits brightness, RGB interface, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application.
